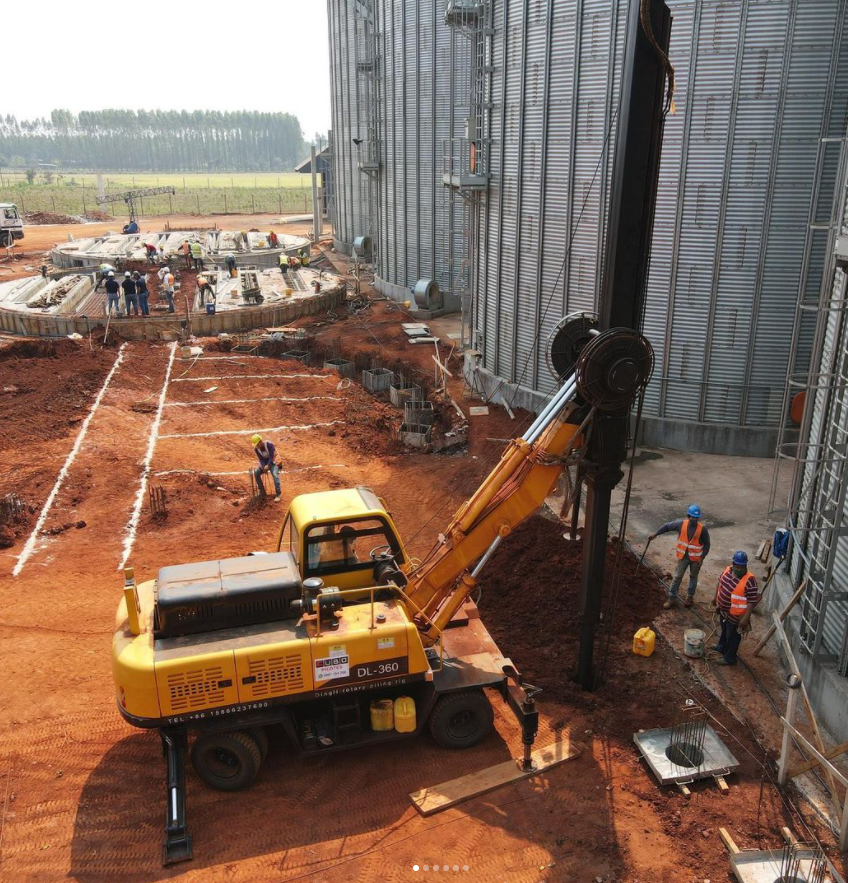

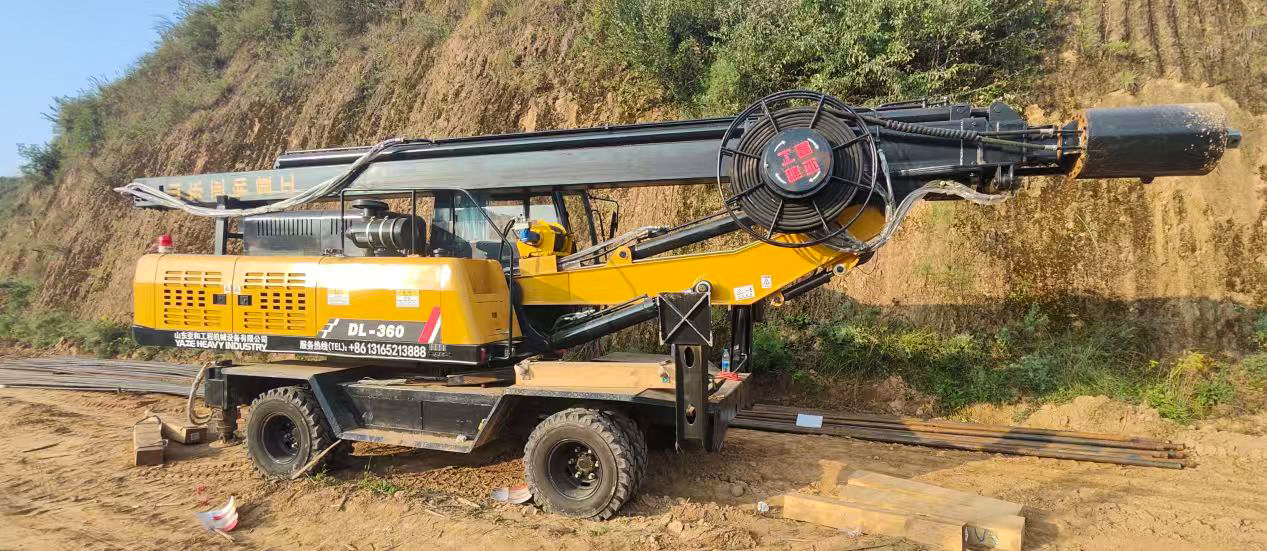

Wheel type rotary drilling rig DL-360 model

YAHE MODEL
(7)
(13)
Wheel rotary drilling rig / Wheel type rotary drilling rig DL-360 model

Wheel type rotary drilling rig DL-360 model

Drilling depth
5-25m
Drilling diameter
450-2000mm
Machine weight
13-16ton
Contact us Send Inquiry
Model DL-360
Machine weight 14T
Maxmum drilling depth 20M
Drilling diameter 500-3000MM
Engine brand WEICHAI
Engine model 6105
Engine rated power 110KW
Maximum lifting force of main winch 80KN
Maximum lifting force of auxiliary winch 15KN
Working status length*width*height 6100*3600*12000MM
Transport  status length*width*height 10200*2300*3100MM
01

Economy

powerful, reliable and durable, low fuel consumption and low operating cost.

02

Easy to transport

the Kelly bar can be transported with the base machine. Transport dimensions do not exceed the limit, saving cost. With large walking traction, it is suitable for field construction and rural town roads.

03

Efficient and convenient

Different types of drill bits can be selected according to geological conditions, such as spiral drill bits, cylindrical drill bits, coring drill bits, drilling drills, and expansion drill bits.

04

Visual driving

The rig can rotate 360 degrees without changing positions, allowing for multi-directional pile driving.
