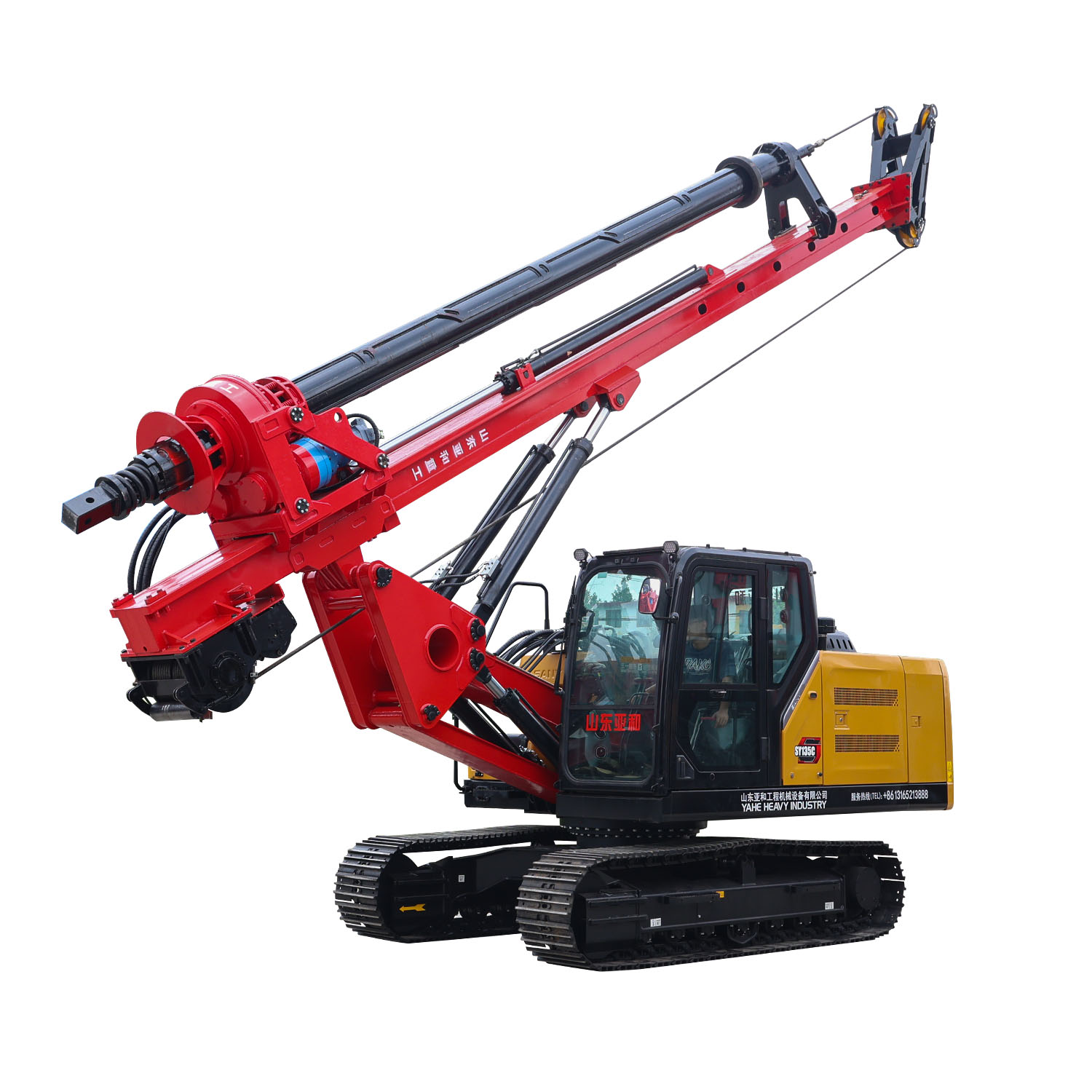

Sany series original drilling rig -DR-135 model
YAHE MODEL
SANY series rotary drilling rig / Sany series original drilling rig -DR-135 model
Sany series original drilling rig -DR-135 model
Drilling depth
5-30m
Drilling diameter
450-2800mm
Machine weight
22-24ton
| Model | DR-135 |
| Machine weight | 24T |
| Maxmum drilling depth | 25-30M |
| Drilling diameter | 400-3000MM |
| Engine brand | KUBOTA/ISUZU |
| Engine rated power | 86KW |
| Maximum lifting force of main winch | 180KN |
| Maximum lifting force of auxiliary winch | 15KN |
| Working status length*width*height | 5600*3200*13000MM |
| Transport status length*width*height | 11500*2500*3500MM |
| Maximum torque of power head | 130KN.M |
| Tail swing radius | 2800MM |
01
Efficient and Flexible
· They are widely used in civil engineering in small dia. and deep borehole construction, high main hoist lifting up and down speed, tall verticality of the finished boreholes, and high working efficiency in civil construction.
02
Customized Chassis
Telescopic large widening chassis designed for rotary drilling rig, roller type large diameter slewing bearing to guarantee the high stability in deep borehole construction.
03
Efficient handling
High definition display screen+reverse image. Dual front and rear cameras.
04
Easy To Transport
During transportation, the tracks are retracted, making it easy for the small cart to move around. No need to go through the procedures for exceeding the limit.
