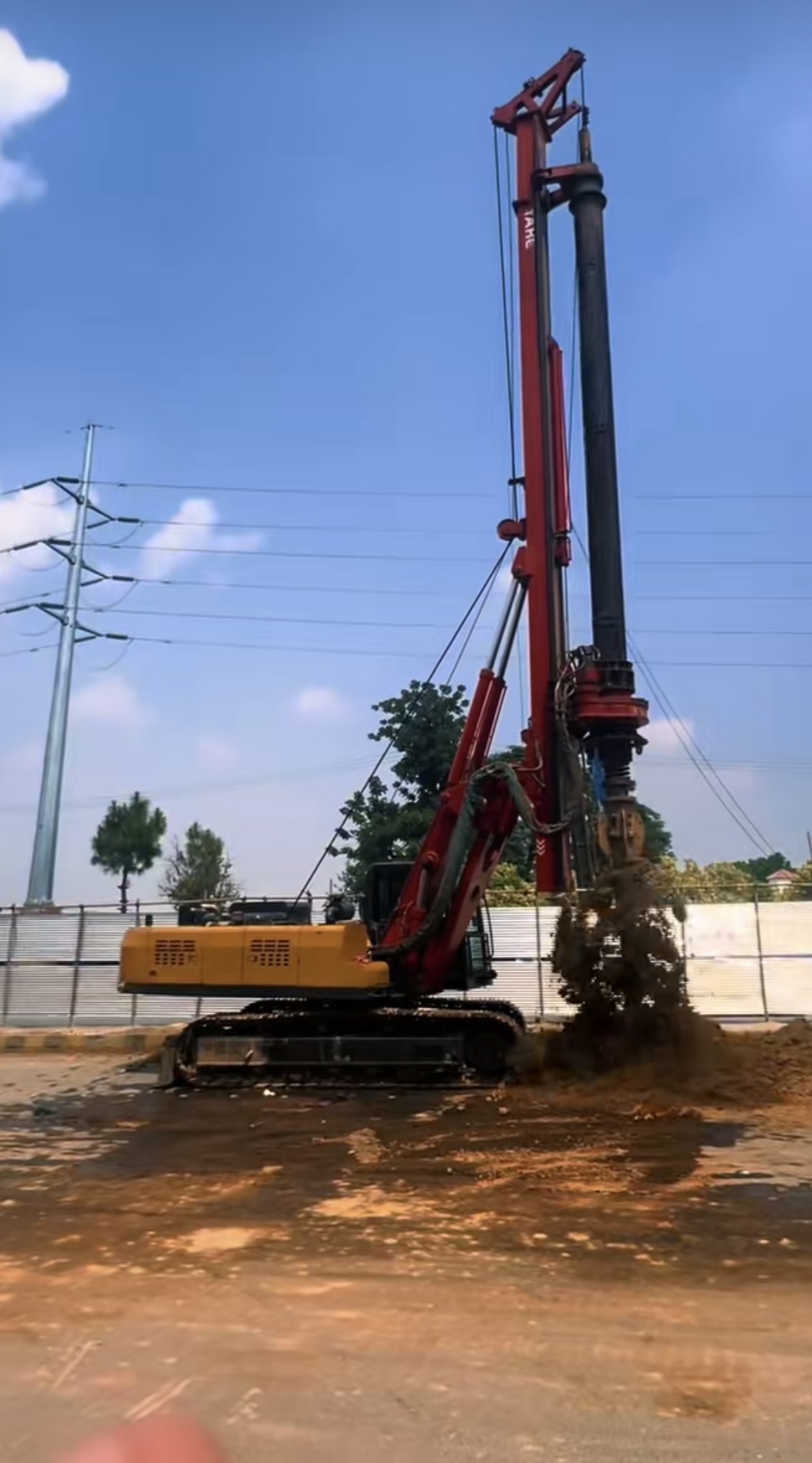

Crawler type inter lock kelly bar rotary drilling rig-DR-130

Drilling depth
25-30m
Drilling diameter
500-1600mm
Engine rated power
126-151KW
Machine weight
26T
Contact us Send Inquiry
model DR-130
Machine weight 26T
Maxmum drilling depth 30M
Drilling diameter 500-1600MM
Engine brand YUCHAI/WECHAI/CUMMINS(OPTIONAL)
Engine rated power 126-151KW
Maximum lifting force of main winch 150KN
Maximum lifting force of auxiliary winch 15KN
Working status length*width*height 6850*2800*13500MM
Transport  status length*width*height 11500*2800*3400MM
Maximum torque of power head 130KN.M
Tail swing radius 3400MM
01

Easy transport

The tracks are retracted during transportation, and the small flatbed truck can be easily transferred. No need to go through the procedures for exceeding the limit.

02

Efficient control

high-definition display screen+reversing image. Dual front and rear cameras.

03

Construction safety

The cab is equipped with a comprehensive protective cover and can be fitted with a cab pedal.

04

High efficiency hydraulic

using imported Kawasaki hydraulic system
