Crawler type inter lock kelly bar rotary drilling rig DR-180 model

Name: Crawler type inter lock kelly bar rotary drilling rig DR-180 model
Brand: SHANDONG YAHE CONSTRUCTION MACHINERY CO., LTD.

YAHE MODEL

Crawler type rotary drilling rig / Crawler type inter lock kelly bar rotary drilling rig DR-180 model

Crawler type inter lock kelly bar rotary drilling rig DR-180 model

Drilling depth

40-45m

Drilling diameter

600-2000mm

Engine power

176-194kw

Machine weight

40-46t

Model	DR-180
Machine weight	46T
Maxmum drilling depth	45M
Drilling diameter	600-2000MM
Engine brand	WECHAI/CUMMINS(OPTIONAL)
Engine rated power	176-194KW
Maximum lifting force of main winch	220KN
Maximum lifting force of auxiliary winch	50KN
Working status lengthwidthheight	8000420017200MM

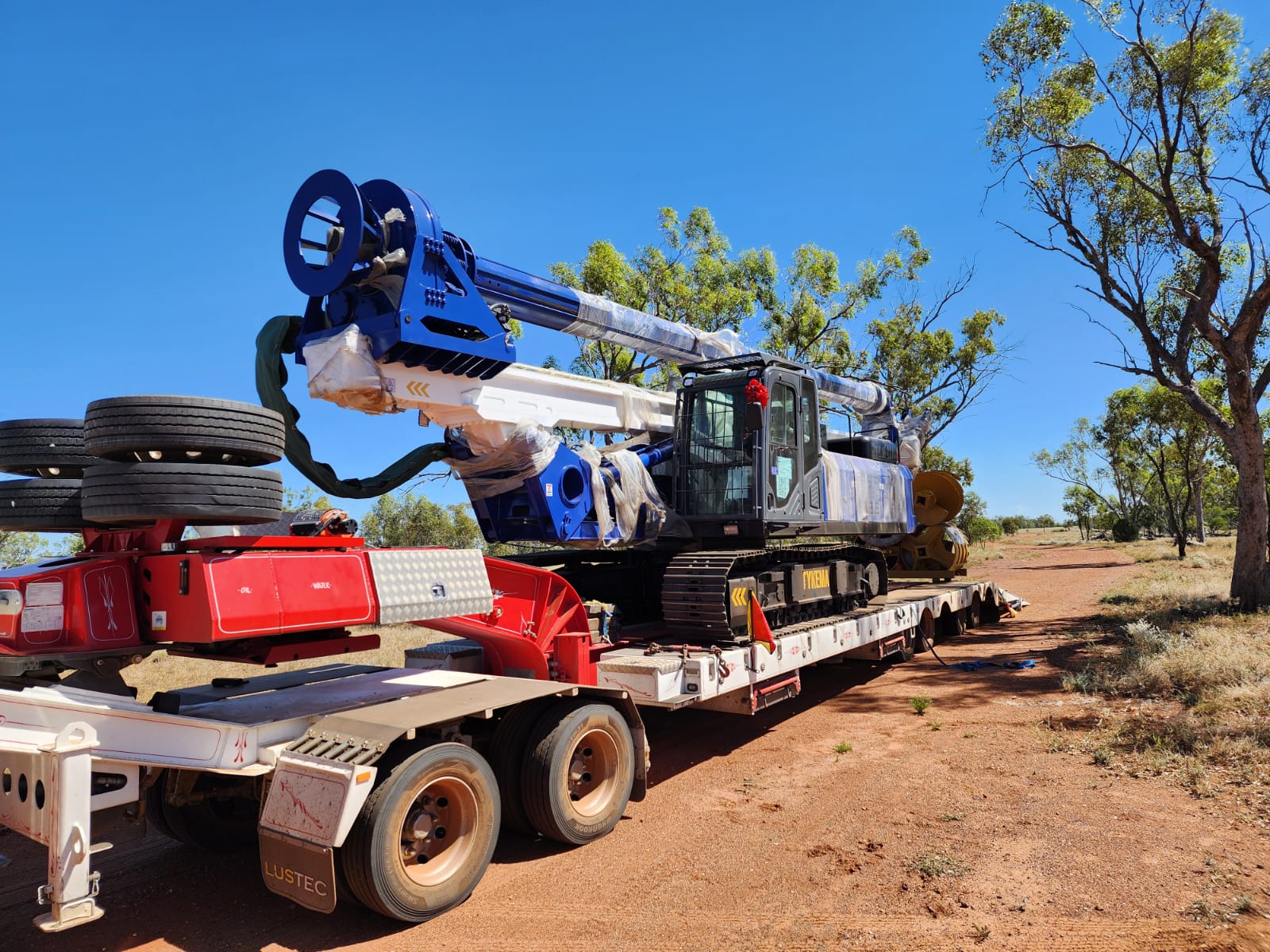

Transport status lengthwidthheight	1200030003550MM
Maximum torque of power head	180KN.M
Tail swing radius	4100MM

High efficiency hydraulic

using imported Kawasaki hydraulic system

efficient and flexible

They are widely used in civil engineering in small dia. and deep borehole construction, high main hoist lifting up and down speed, tall verticality of the finished boreholes, and high working efficiency in civil construction.

special chassis

Telescopic large widening chassis designed for rotary drilling rig, roller type large diameter slewing bearing to guarantee the high stability in deep borehole construction.

High reliability

The mast adopts a box structure with solid resistance to torsion and fatigue; the sixth-generation Kelly bar adopts upgraded material and strengthened block ring; the overall strength increased by 25% with high drilling ability in the strongly weathered rock layer.
