Crawler type inter lock kelly bar rotary drilling rig DR-160 model

YAHE MODEL

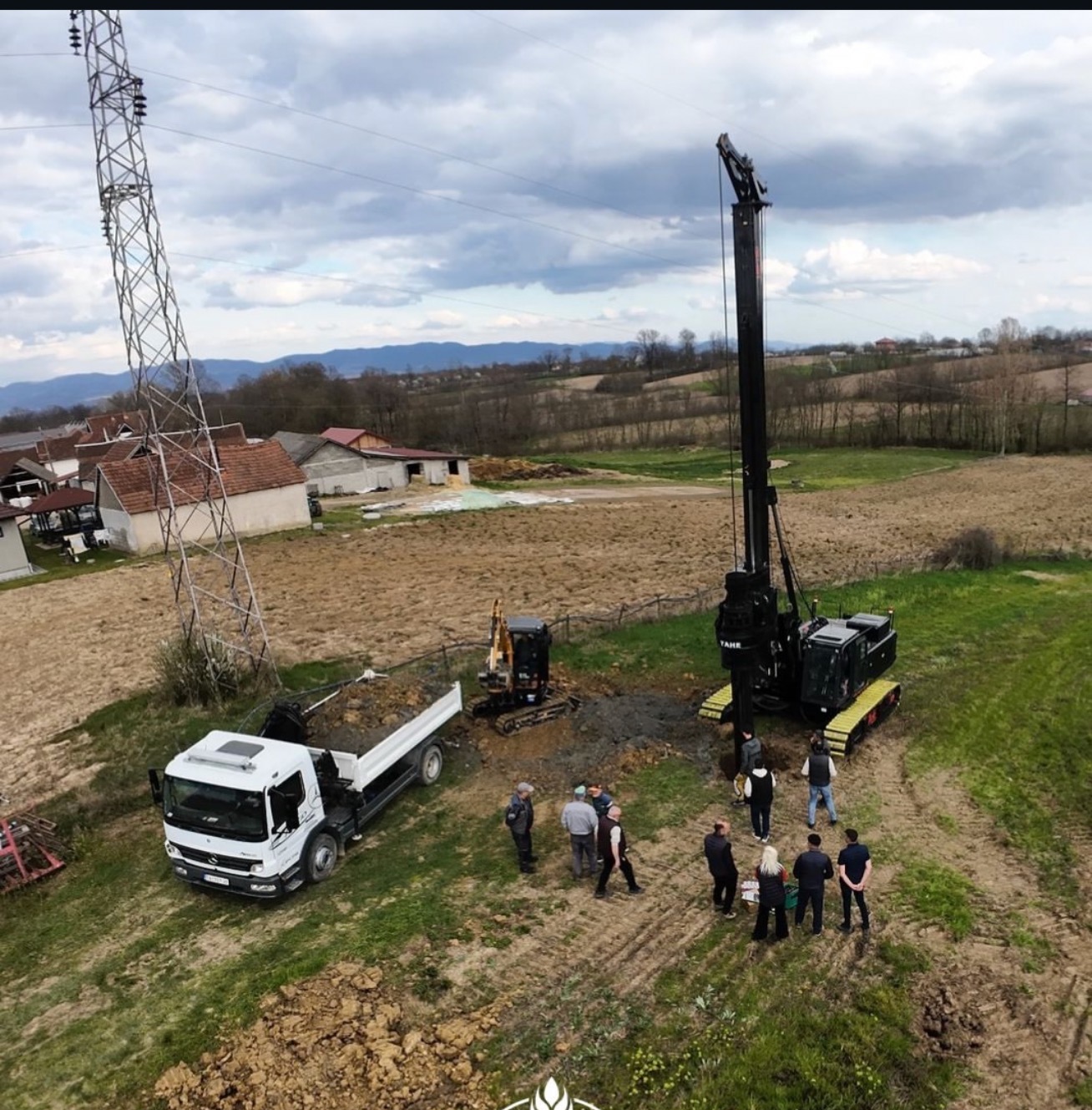

DR-160黑色
Crawler type rotary drilling rig / Crawler type inter lock kelly bar rotary drilling rig DR-160 model

Crawler type inter lock kelly bar rotary drilling rig DR-160 model

Drilling depth
35-40m
Drilling diameter
500-1800mm
Engine brand
weichai/cummins(optional)
Machine weight
36t
Contact us Send Inquiry
Model DR-160
Machine weight 36T
Maxmum drilling depth 40M
Drilling diameter 500-1800MM
Engine brand WECHAI/CUMMINS(OPTIONAL)
Engine rated power 158-176KW
Maximum lifting force of main winch 200KN
Maximum lifting force of auxiliary winch 15KN
Working status length*width*height 7850*4000*15000MM
Transport  status length*width*height 13500*2800*3500MM
Maximum torque of power head 160KN.M
Tail swing radius 3950MM
01

Track protection

Rubber protective covers can be installed to effectively protect the ground.

02

Efficient control

high-definition display screen+reversing image. Dual front and rear cameras.

03

Easy to operate

buttons, graphics, and text integrated for easy understanding. Smooth handle, visualized cab.

04

Construction safety

The cab is equipped with a comprehensive protective cover and can be fitted with a cab pedal.
