Wheel rotary drilling rig

Provide customized product solutions for customers

It can be operated in all terrains and complex working conditions, and the meteorological weathered rock, strong weathered rock, cobblestone, backfill stone, etc. can be taken by one machine

DR-210 Wheel Type  Rotary Drilling Rig
DR-210 Wheel Type  Rotary Drilling Rig
DR-210 Wheel Type  Rotary Drilling Rig
DR-210 Wheel Type  Rotary Drilling Rig
DR-210 Wheel Type  Rotary Drilling Rig
Wheel rotary drilling rig

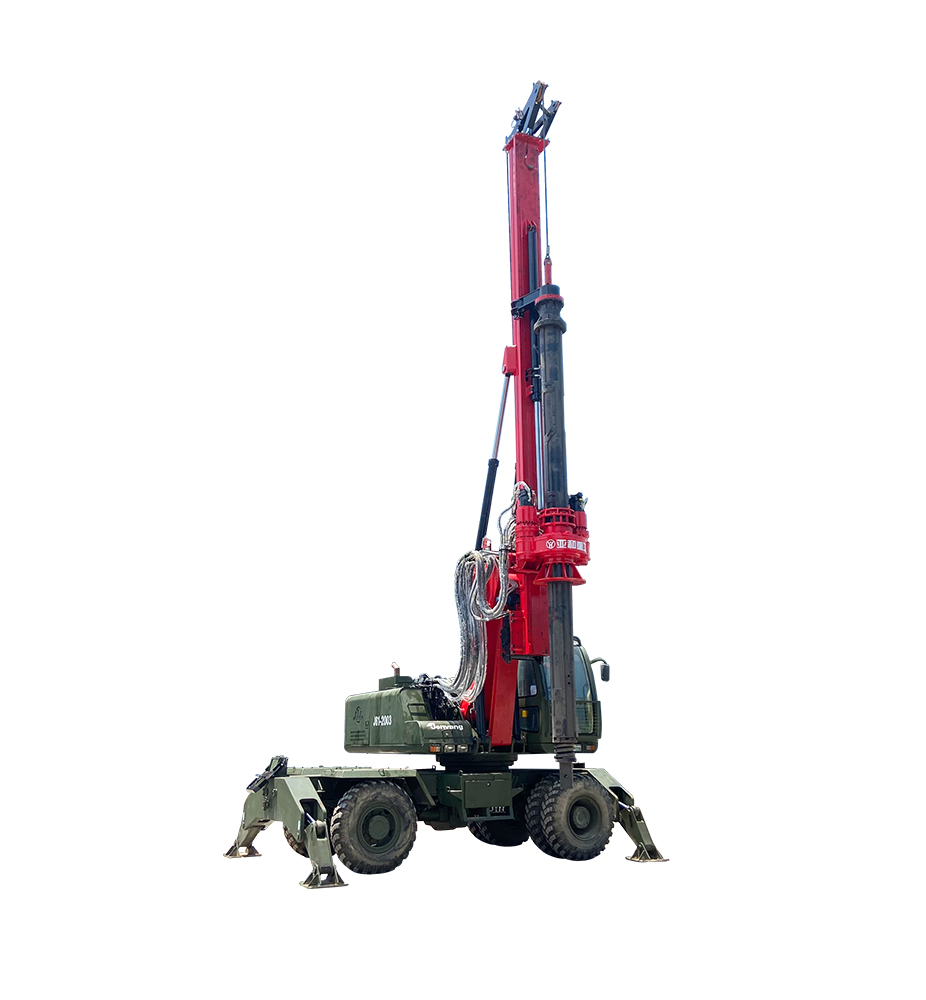

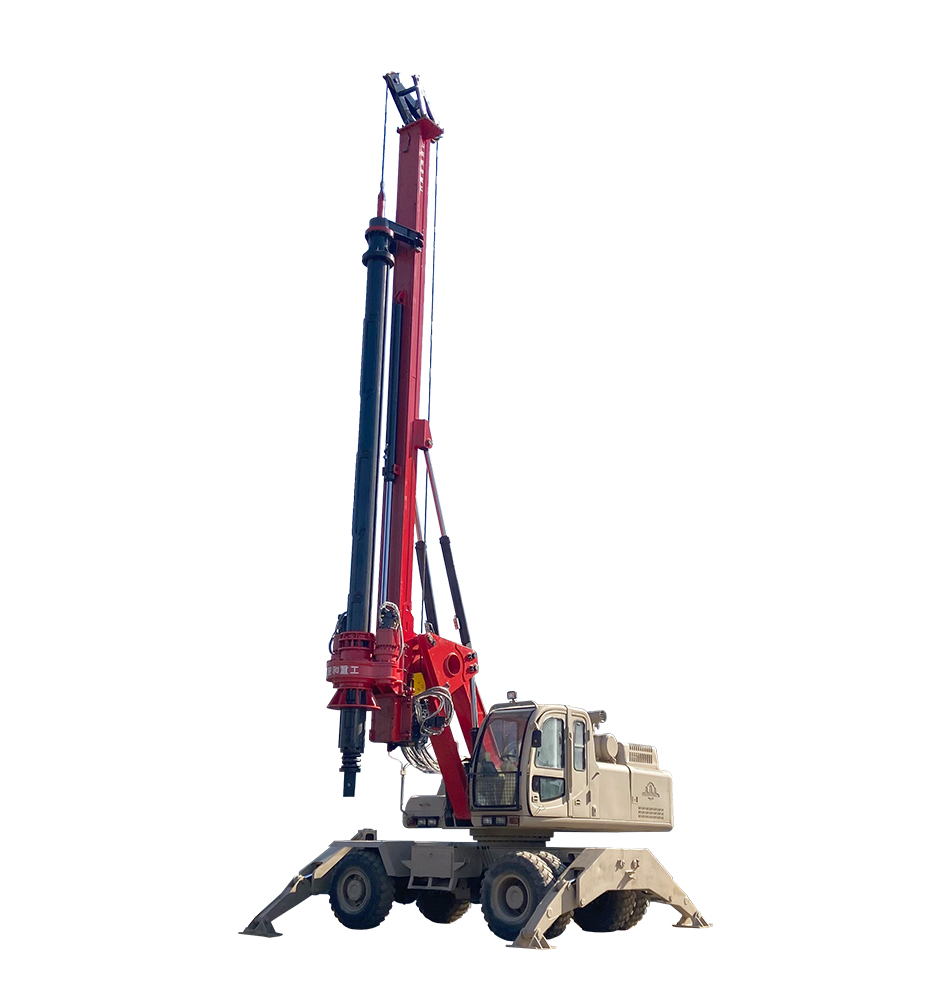

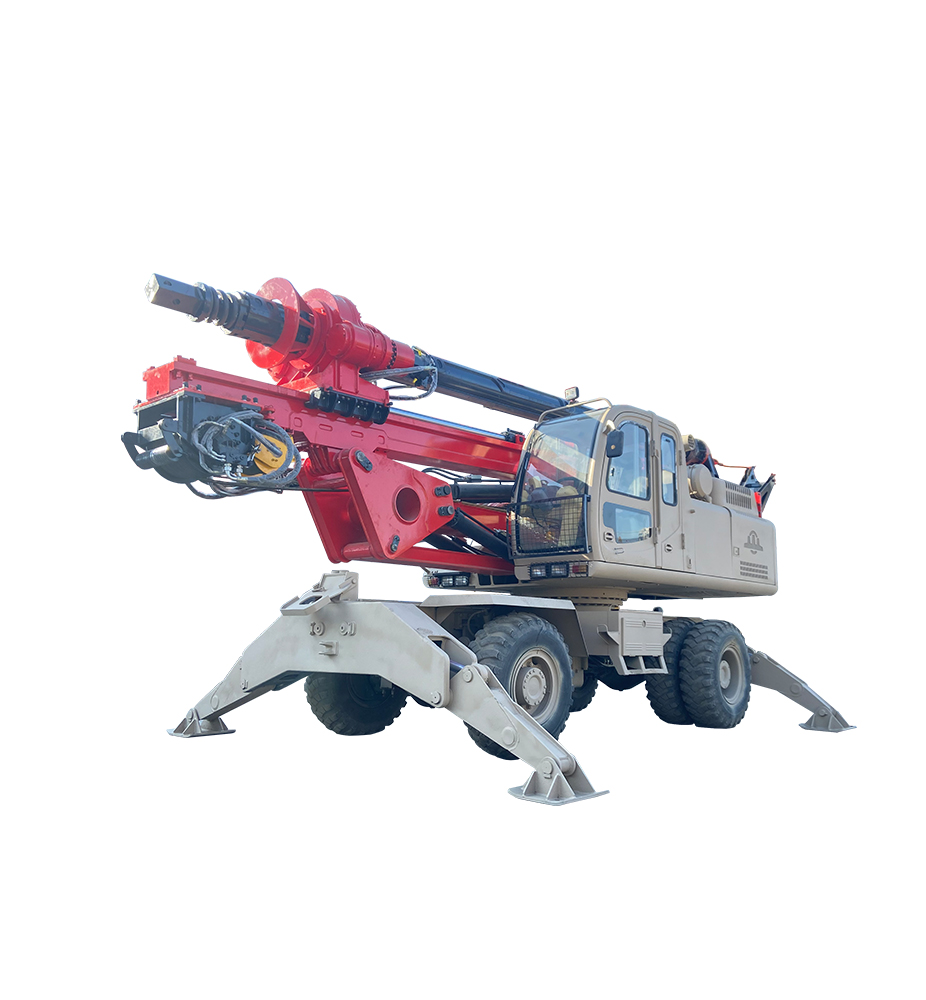

DR-210 Wheel Type Rotary Drilling Rig

This is a wheeled, machine lock rod drilling rig, characterized by wheel drive, abundant horsepower, and strong maneuverability. It can maintain a normal speed of 40KM/H on highways, suitable for small civil engineering and construction projects with scattered and narrow construction sites. For example, drilling and excavation of continuous highway bypass light pile holes, continuous pole pile holes, as well as drilling and excavation of large and medium-sized tree planting pits in continuous road green belts. This also applies to villa development and infrastructure projects of real estate developers. It can also be used for drilling shallow water wells, dredging small tunnels, etc. This model of drilling rig has a drilling depth of 30m and a drilling diameter of 3000mm. This product is highly praised by customers for its wide range of applications, reliable quality, and high cost-effectiveness.

Consulting Products

1. Adopting four-wheel drive and fully hydraulic four legged chassis, providing convenience and economy for equipment transportation;


2. Adopting dual power heads to increase torque and a large flow main pump, the power is strong and more energy-efficient;


3. A-type telescopic leg, easy to make, strong stability, and wide adaptability;


4. The ship adopts a buffer protection system for rotation, effectively ensuring the safety of rotary drilling rig construction;


5. All oil cylinders in the car are equipped with bidirectional balancing valves, providing a higher safety factor;


Machine weight.(t)25
Maximum drilling depth.(m)30
Maximum drilling diameter .(mm)3000
Engine rated power.(KW/rpm)184
Walking DriveFour wheel drive
Maximum torque of power head.(KN.m)120
Power head speed.(rpm)10-50
Maximum working pressure of hydraulic system main pump.(MPa)31.5
Maximum bow rate of the main pump hydraulic system.(L/min)120
Maximum pressurization force of the pressurization system(KN)100
Maximum lifting force of the pressurization system(KN)80
Maximum stroke of the pressurization system(m)2.5
Maximum lifting force of the main winch.(KN)12
Maximum lifting speed of the main winch(m/min)50
Maximum lifting force of the auxiliary winch.(KN)1.5
Maximum lifting speed of auxiliary winch(m/min)50
Left and right inclination angle of drilling mast(°)±5
Forward and backward inclination angle of the drilling mast. (°)±5
Overall width of working state.(mm)3500
Overall length of transport status.(mm)10100
Overall width of transport status.(mm)3000
Overall height of transport status.(mm)3750

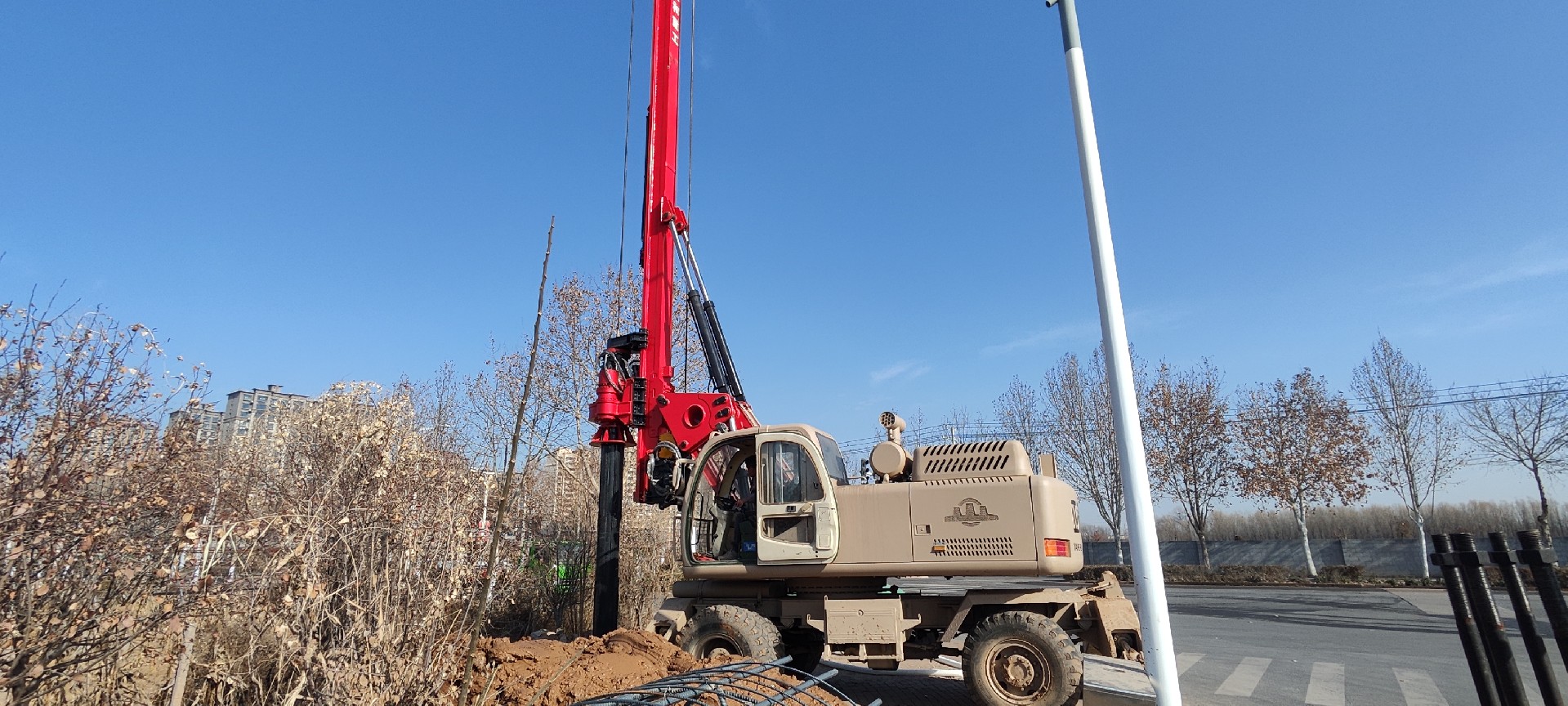

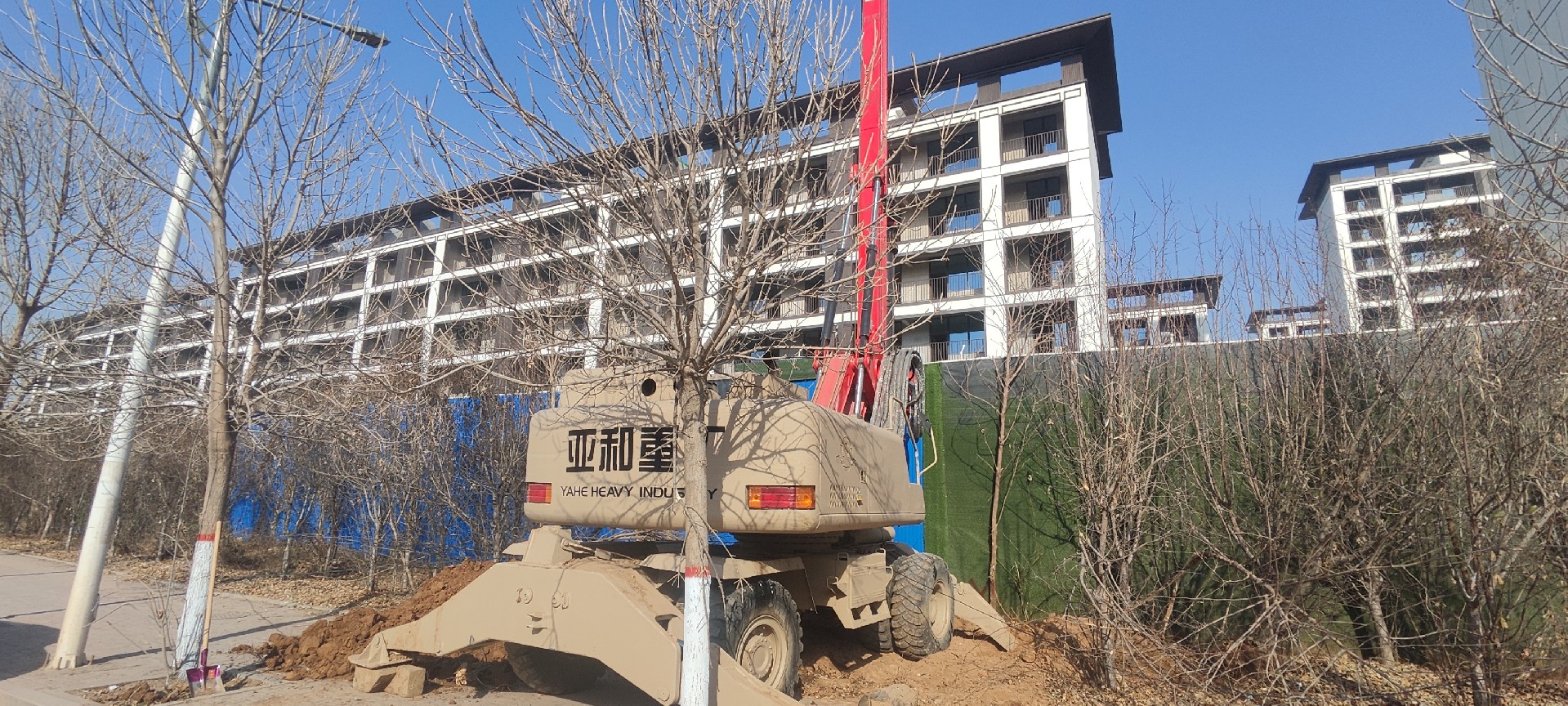

Construction Cases
