Kelly bar rotary drilling rig

Provide customized product solutions for customers

It can be operated in all terrains and complex working conditions, and the meteorological weathered rock, strong weathered rock, cobblestone, backfill stone, etc. can be taken by one machine

DR-100
DR-100
DR-100
DR-100
DR-100
DR-100
DR-100

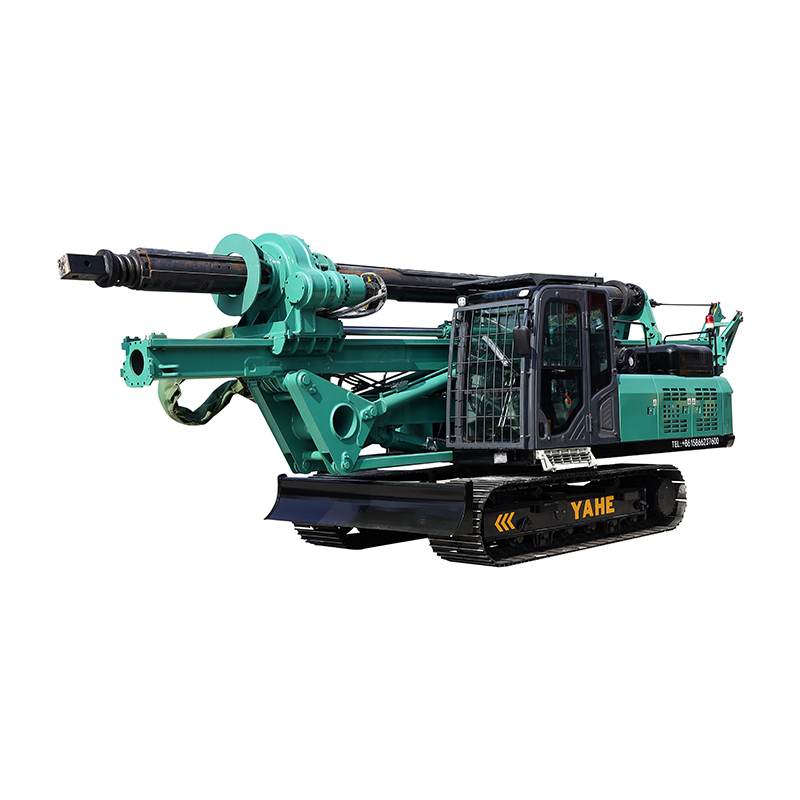

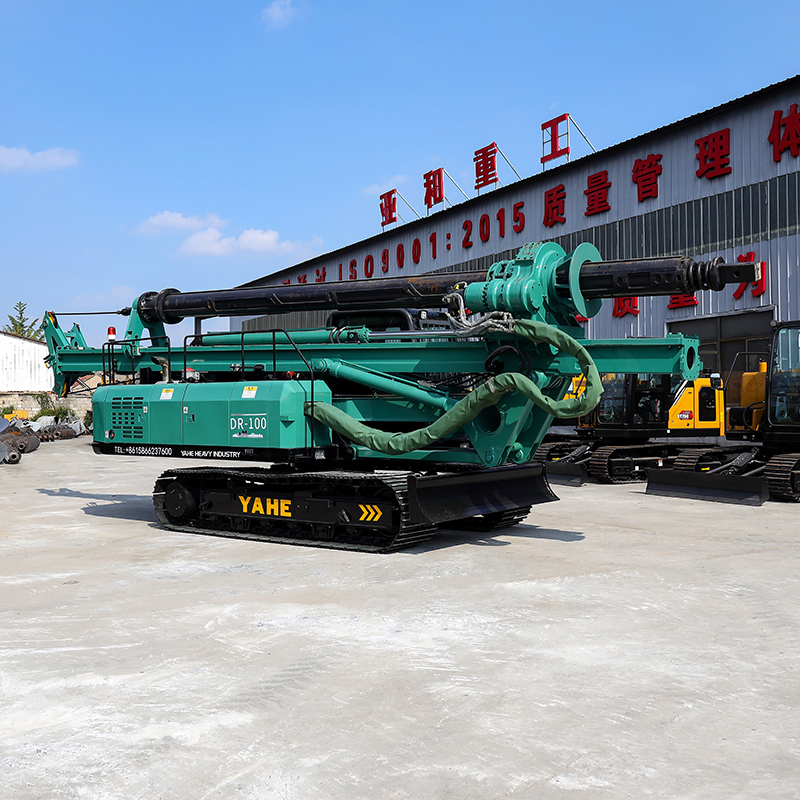

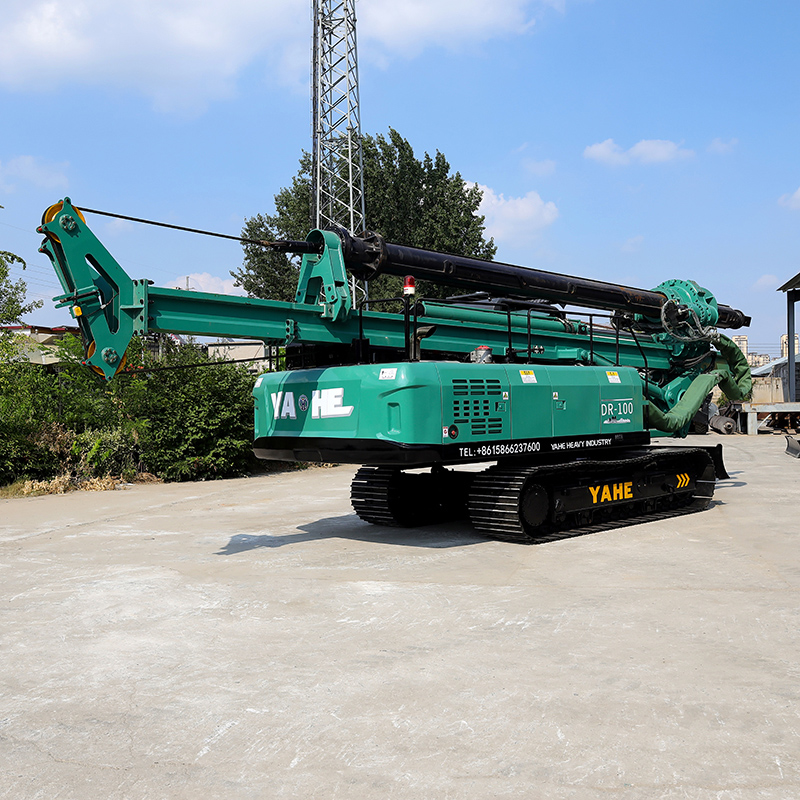

Kelly bar rotary drilling rig
DR-100

The model has obtained a number of product quality and management performance certifications including ISO, CE, SGS, BV. Widely used in the construction of infrastructure and construction projects. This model is a crawler chassis, diesel-powered, 360-degree rotating car body, equipped with Kelly drill rods, auger drills, barrel drills, reaming drills, etc. The company is a professional R & D enterprise for the production of rotary drilling rigs. The factory's 25-year raw products have been exported to more than 30 countries on 5 continents. Widely recognized by the international market. Welcome to our company for inspection. Shandong Dingli Construction Machinery Co., Ltd.


Machine weight:22-24t
Maximum drilling depth:20m
Drilling diamete:450-1600mm
Consulting Products

     Product Type

     DR-100

     Chassis length.(mm)

     3700

     Track width.(mm)

     600

     Machine weight.(t)

     22-24

     Maximum drilling depth.(m)

     20

     drilling diameter.(mm)

     450-1600

     Engine brand

     Yuchai/Weichai/Cummins(Optional)

     Engine rated power.(KW/rpm)

     110KW-151KW

     Maximum torque of power head.(KN.m)

     100

     Power head speed.(rpm)

     10-50

     Maximum working pressure of hydraulic system main pump.(MPa)

     30

     Maximum working pressure of hydraulic system auxiliary pump.(MPa)

     12

     Maximum bow rate of the main pump hydraulic system.(L/min)

     63*2(Optional)

     Maximum bow rate of the auxiliary pump hydraulic system.(L/min)

     16

     Maximum pressure of the pressurization system.(KN)

     100

     Maximum lifting force of the pressurization system.(KN)

     80

     Maximum travel pressure system.(mm)

     3000

     Maximum lifting force of the main winch.(KN)

     120

     Maximum pull-up speed of the main winch. (m/min)

     50

     Maximum lifting force of the auxiliary winch.(KN)

     15

     Maximum pull-up speed of the auxiliary winch.(m/min)

     50

     Left and right inclination angle of drilling mast(°)

     ±5

     Forward and backward inclination angle of the drilling mast. (°)

     5/90

     Maximum driving speed(KM/h)

     1.5

     Maximum climbing angle.(°)

     25

     Maximum Driving torque.(KN.m)

     40000

     Overall width of working state.(mm)

     2600

     Overall length of transport status.(mm)

     11500

     Overall width of transport status.(mm)

     2600

     Overall height of transport status.(mm)

     3350

     Drill rod type

     Machine Lock

     Drill rod whether to provide custom

     Yes

     drill tools

     500-1600mm drilling bit、Drilling Barrel、Coring drill、Reaming drilling bit

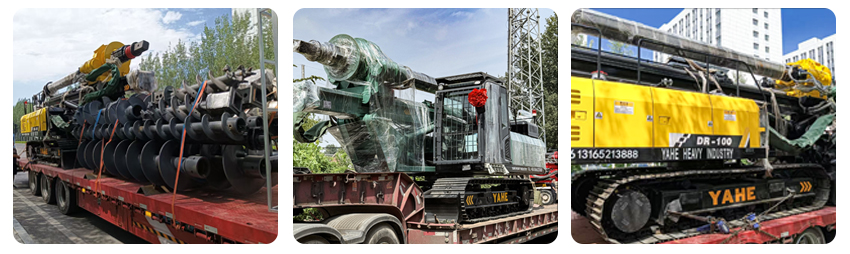

Construction Cases
