Wheel rotary drilling rig

Provide customized product solutions for customers

It can be operated in all terrains and complex working conditions, and the meteorological weathered rock, strong weathered rock, cobblestone, backfill stone, etc. can be taken by one machine

DL-360
DL-360
DL-360
DL-360
DL-360
DL-360
DL-360

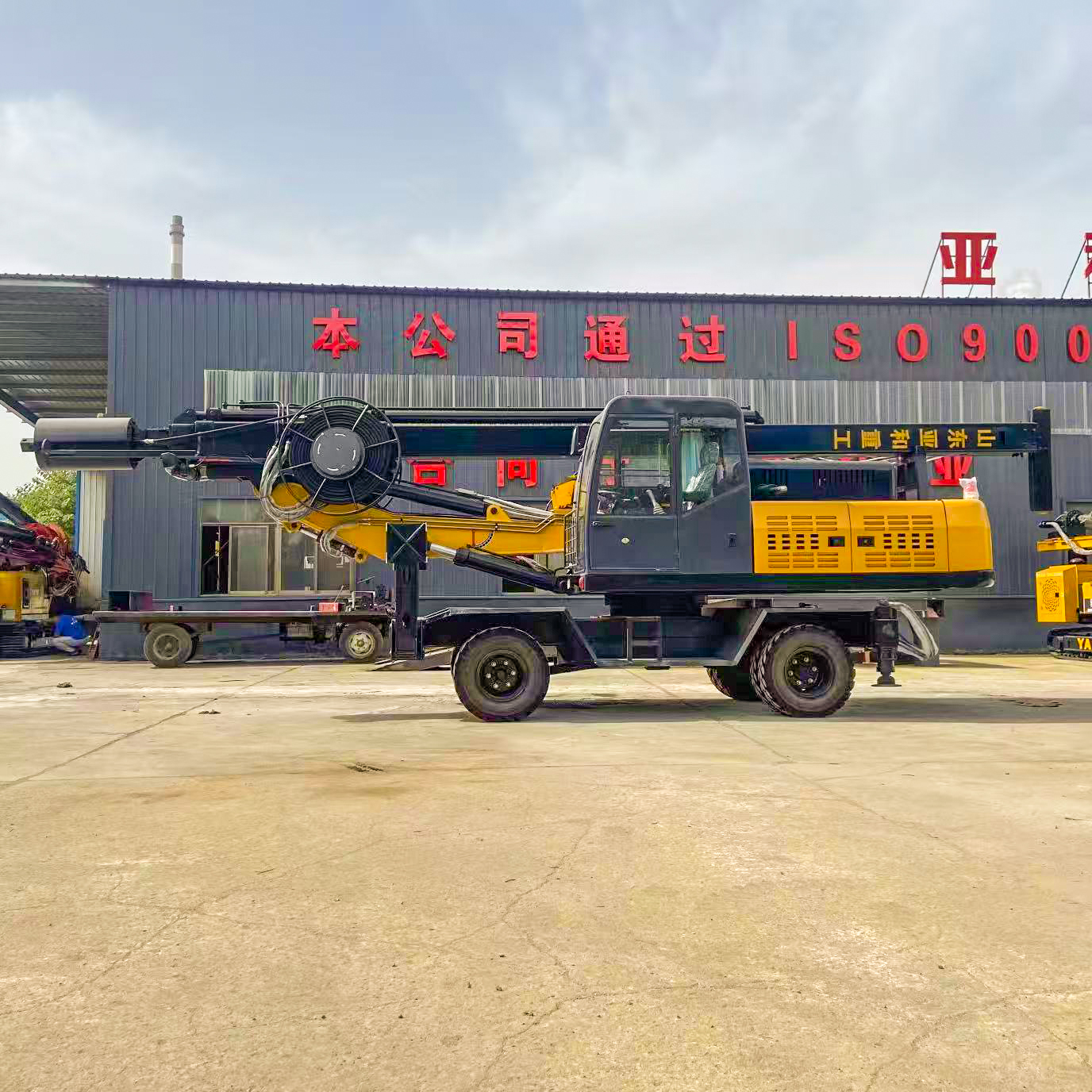

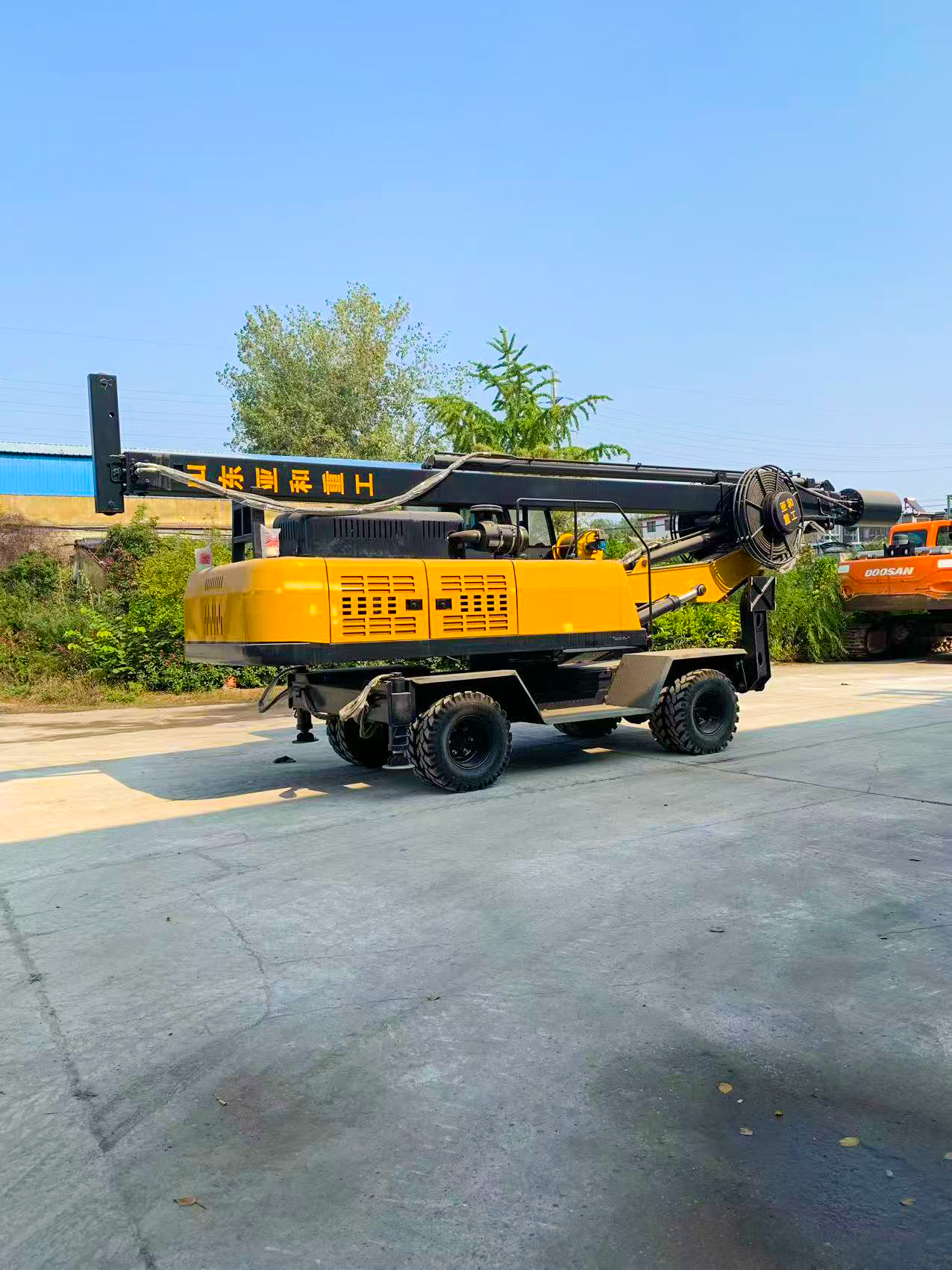

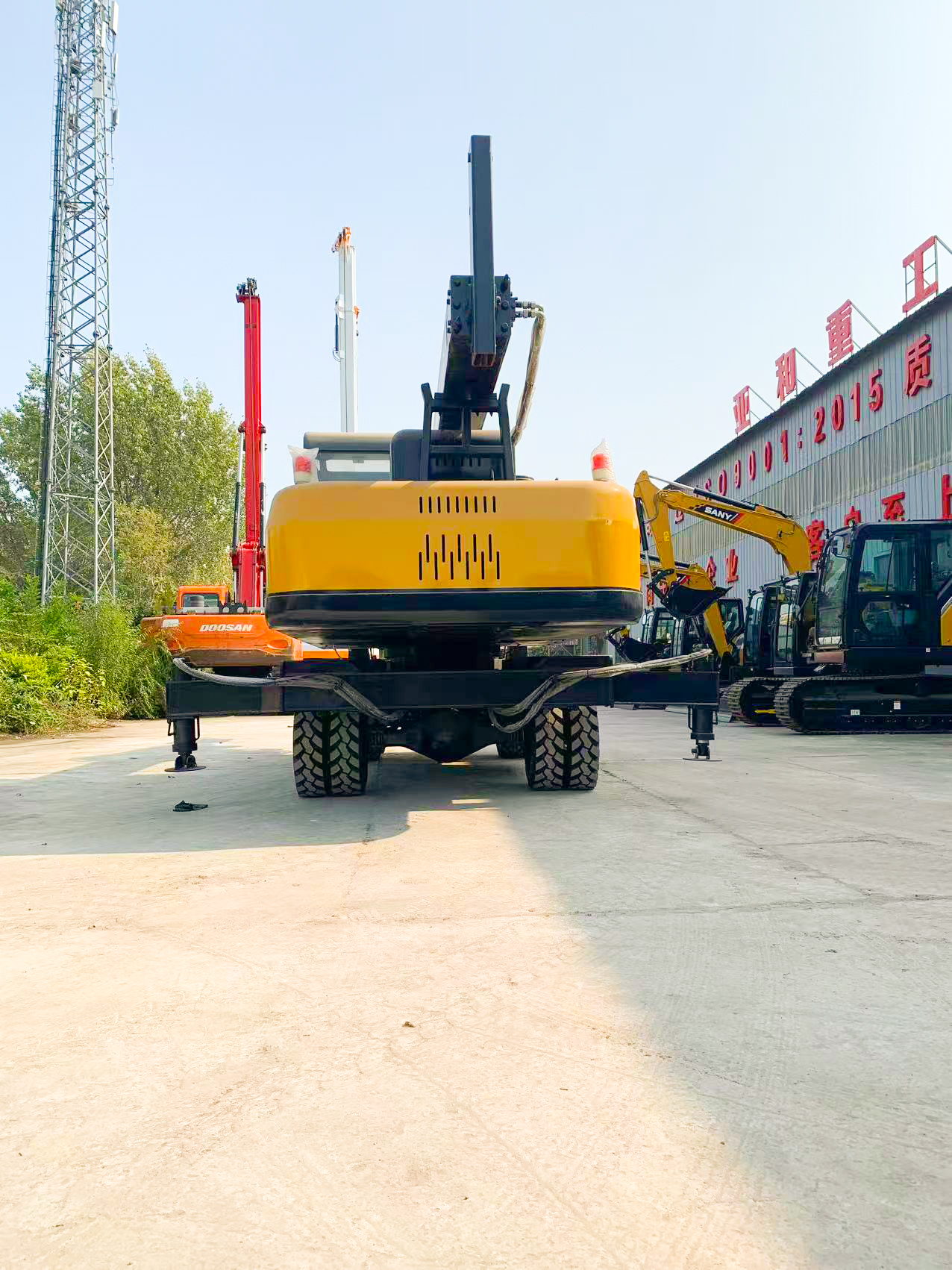

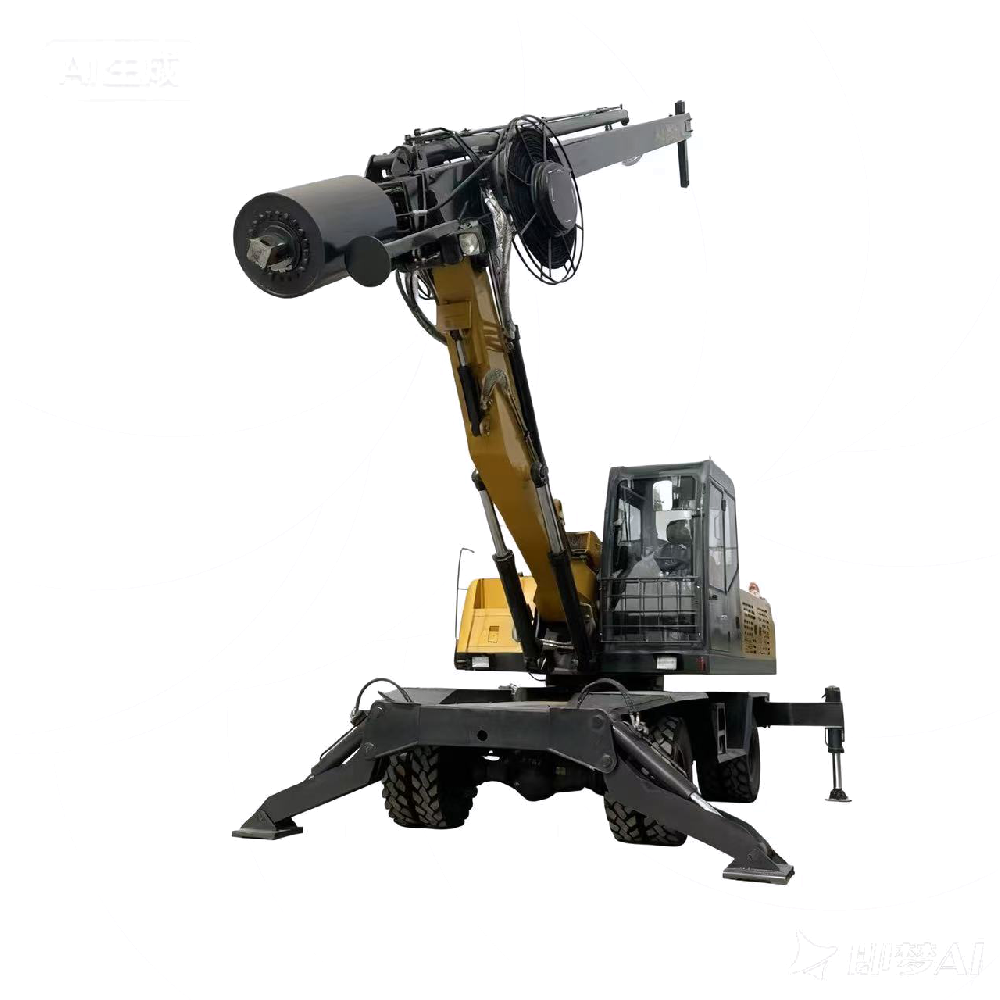

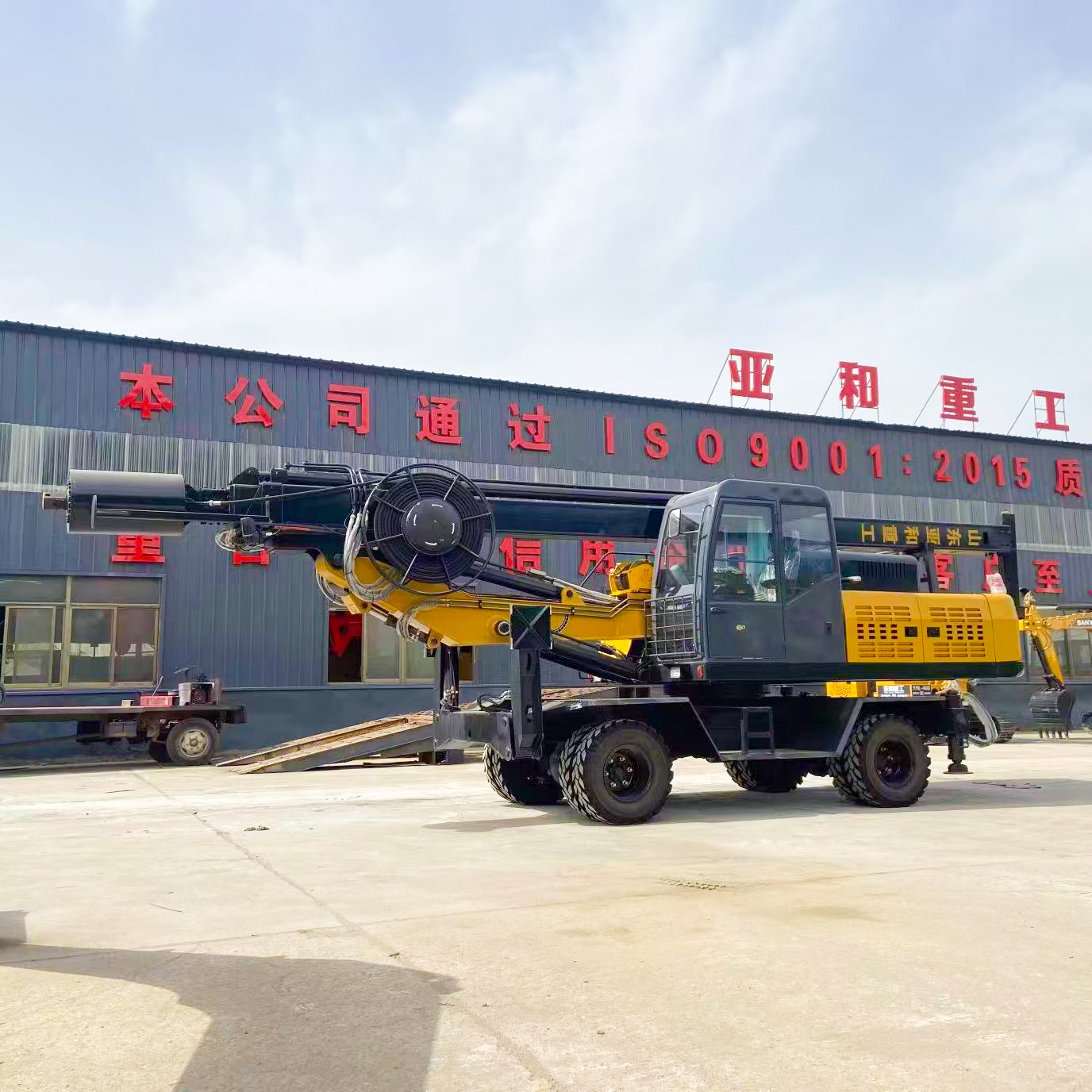

Wheel rotary drilling rig
DL-360

This is a wheeled, square drill rod rig. Its biggest features are its compact size, abundant horsepower and strong maneuverability. It can maintain a normal speed of 40KM / H on the highway. Construction project construction. For example, continuous highway road lamp hole drilling construction work, continuous telephone pole hole drilling construction work, continuous road green belt digging large and medium-sized tree planting pits. The same applies to real estate developers' villa development infrastructure projects. It can also be used for drilling shallow water wells and dredging small tunnels. This model has a maximum drilling depth of 20 meters and a drilling diameter of 500-1500MM. This product is widely praised by customers for its advantages such as wide use, reliable quality and high cost performance. The products produced by the company have obtained CE / ISO / SGS international quality certification. For more information, welcome your consultation.


Machine weight:10-13t
Maximum drilling depth:10-30(Optional)
drilling diameter:500-1500mm
Consulting Products
     Product Type     DL-360
     Chassis length.(mm)     4700
     tyre model     825-16
     Machine weight.(t)     10-13
     Maximum drilling depth.(m)     10-30(Optional)
     Drilling diameter.(mm)     500-1500
     Engine brand     Weichai
     Engine Model     4108/6105(Optional)
     Engine rated power.(KW/rpm)     85KW-126KW
     Drive type     Four-wheel drive
     Travelling mode     Mechanical
     Maximum Torque of Power Head.(N.m)     24000-30000
     Power head speed.(rpm)     10-30
     Power head whether to provide custom     Yes
     Maximum working pressure of hydraulic system main pump.(MPa)     25
     Maximum working pressure of hydraulic system auxiliary pump.(MPa)          12
     Maximum bow rate of the main pump hydraulic systen.(L/min)     50*2
     Maximum bow rate of the auxiliary pump hydraulic systen.(L/min)     16
     Maximum pressure of the pressurization system.(KN)     80
     Maximum lifting force of the pressurization system.(KN)     80
     Maximum travel pressure system.(m)     20
     Maximum lifting force of the main winch.(KN)     80
     Maximum pull-up speed of the main winch. (m/min)     80
     Maximum lifting force of the auxiliary winch.(KN)     15
     Maximum pull-up speed of the auxiliary winch.(m/min)     50
     Maximum lifting power of the auxiliary winch.(t)     1.5
     Left and right inclination angle of drilling mast.(°)     ±5
     Forward inclination angle of drilling mast.(°)     4
     Maximum driving speed.(KM/h)     35
     Maximum climbing angle.(°)     30
     Overall width of working state.(mm)     4000
     Overall length of transport status.(mm)     10200
     Overall width of transport status.(mm)     2200
     Overall height of transport status.(mm)     3000
     Drill rod type     Square rod. pressurized type/self-pressure
     Drill rod whether to provide custom     Yes
     Drilling tools     500-1500mm drilling bit、Drlling Barrel、Coring drill、Reaming drilling bit
     Drilling tools whether to provide custom     Yes

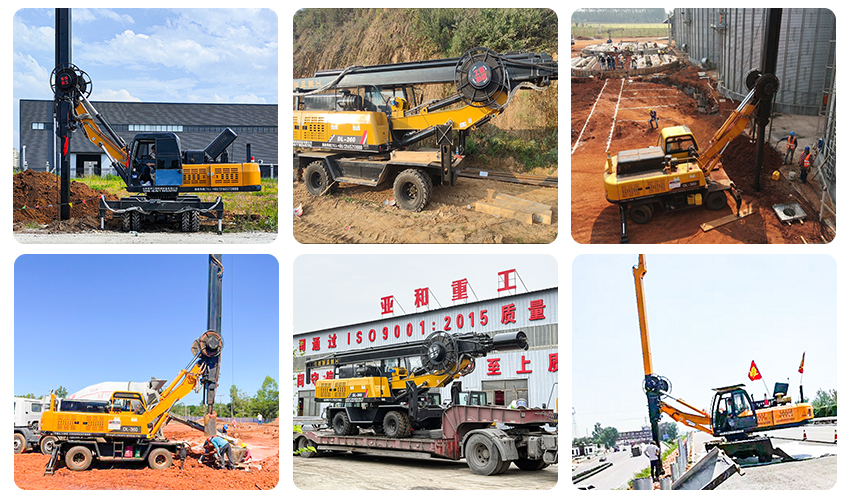

Construction Cases
