Kelly bar rotary drilling rig

Provide customized product solutions for customers

It can be operated in all terrains and complex working conditions, and the meteorological weathered rock, strong weathered rock, cobblestone, backfill stone, etc. can be taken by one machine

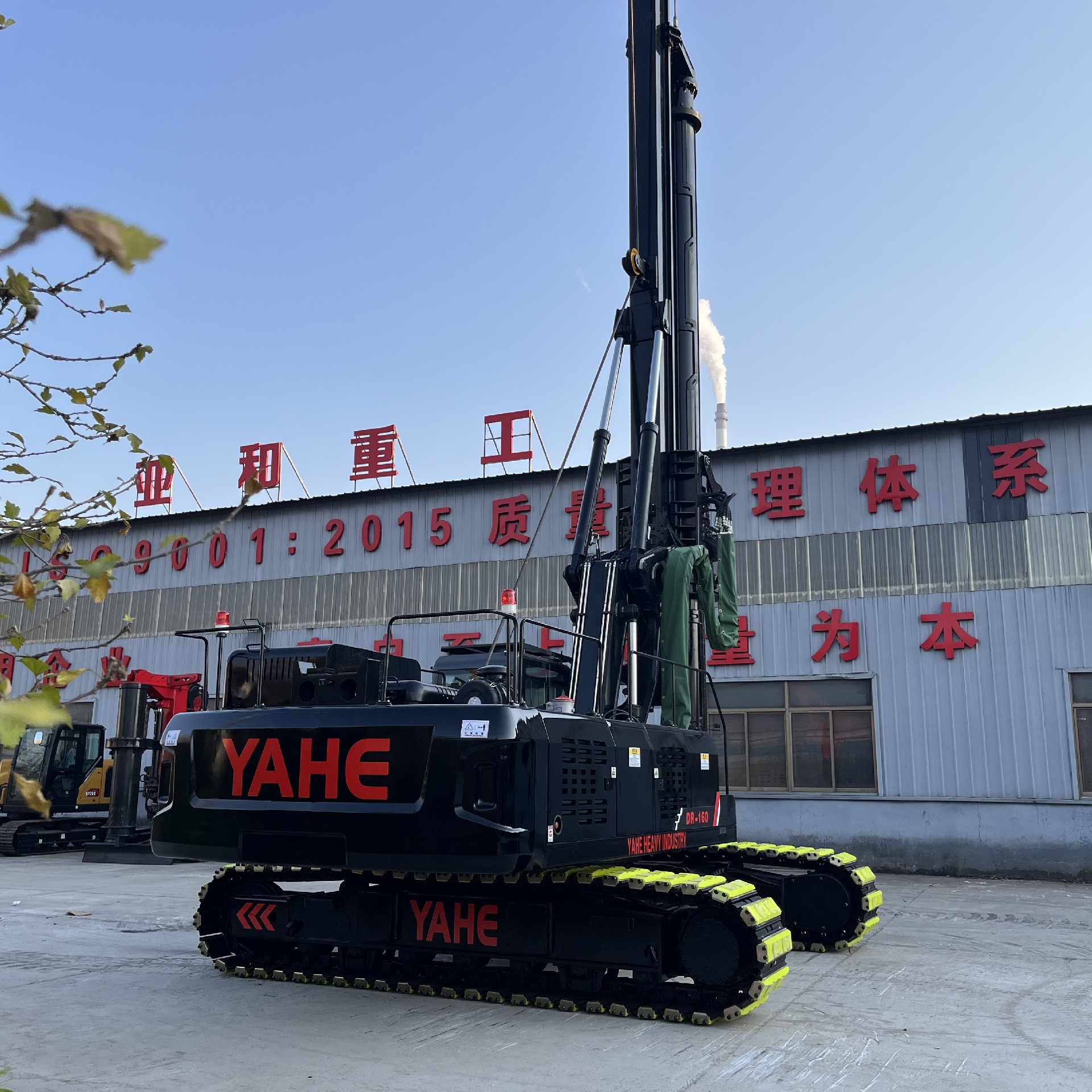

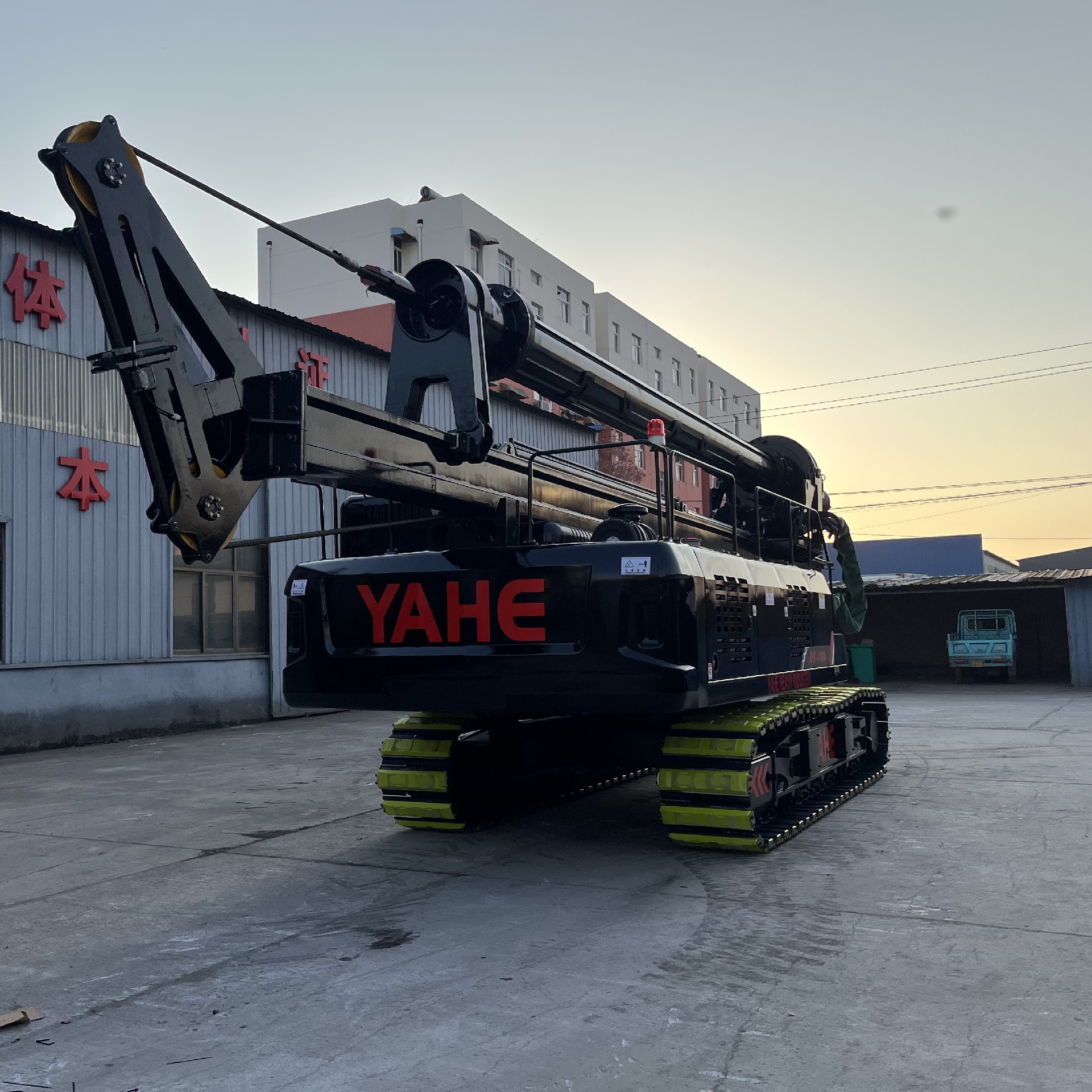

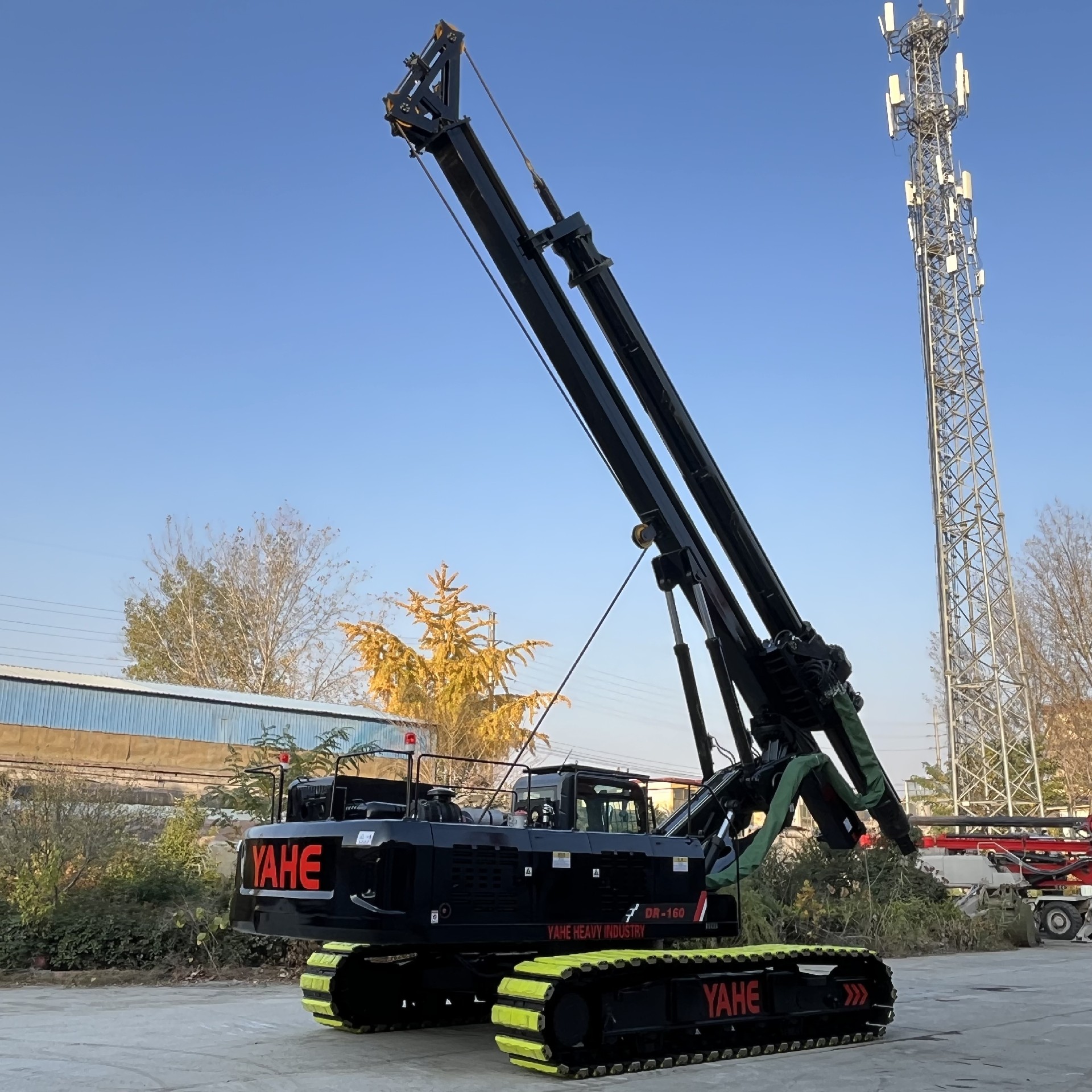

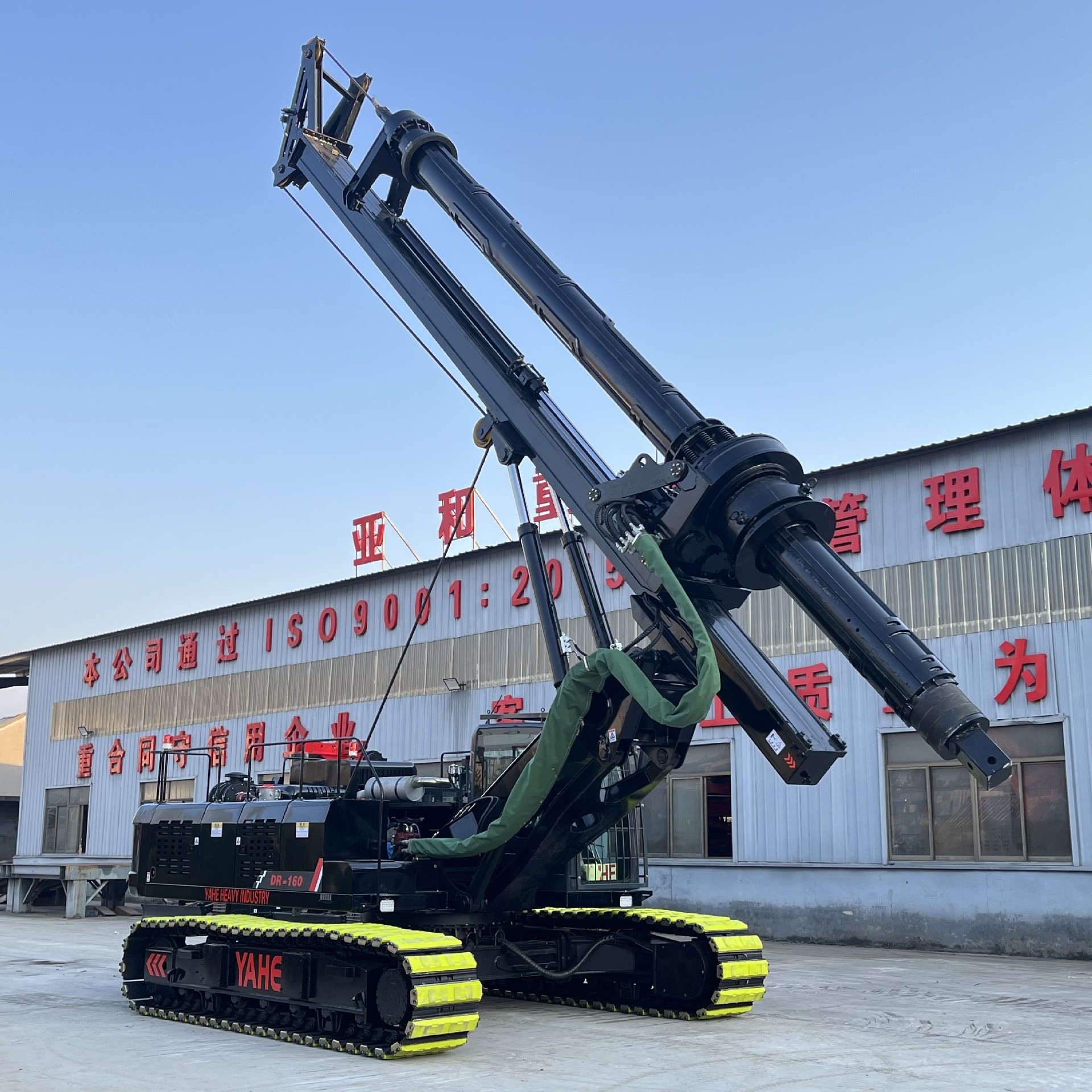

DR-160
DR-160
DR-160
DR-160
DR-160
DR-160
DR-160
Kelly bar rotary drilling rig
DR-160

This pile driver uses a new retractable crawler chassis as a carrier, is equipped with a high-power brand engine and hydraulic system, and is equipped with a new visual control system, which can realize wireless remote control. The maximum drilling depth of the standard pile driver is 30M, the upgraded drill depth is 40M, the drilling radius is 500-1800MM, the pile driver body can be freely selected 360, the mast has automatic vertical adjustment function, and an auxiliary hoist is installed on the mast to assist the lifting project Equipment materials. The driver's cab is equipped with adjustable seats, an optional air conditioning and ventilation system, and a steel knot protection net is installed on the outer layer of the driver to protect the safety of construction workers. Various models of the company can be customized according to customer requirements and support OEM product customization. All models of the company have obtained CE, SGS, ISO quality system certification. If you get more information, welcome your inquiry.


Machine weight:35t
Maximum drilling depth:40m
drilling diameter:500-1800mm
Consulting Products

Reliable quality assurance and dynamic performance are the best choice for large-scale construction

    Product Type

    DR-160

    Chassis length.(mm)

    4800

    Track width.(mm)

    600

    Machine weight.(t)

    35

    Maximum drilling depth.(m)

    40

    drilling diameter.(mm)

    500-1800

    Engine brand

    Weichai/Cummins(Optional)

    Engine rated power.(KW/rpm)

    158KW-176KW

    Maximum torque of power head.(KN.m)

    160

    Power head speed.(rpm)

    10-50

    Maximum working pressure of hydraulic system main pump.(MPa)

    30

    Maximum working pressure of hydraulic system auxiliary pump.(MPa)

    12

    Maximum bow rate of the main pump hydraulic system.(L/min)

    112*2(Optional)

    Maximum bow rate of the auxiliary pump hydraulic system.(L/min)

    16

    Maximum pressure of the pressurization system.(KN)

    100

    Maximum lifting force of the pressurization system.(KN)

    80

    Maximum travel pressure system.(mm)

    3000

    Maximum lifting force of the main winch.(KN)

    150

    Maximum pull-up speed of the main winch. (m/min)

    50

    Maximum lifting force of the auxiliary winch.(KN)

    15

    Maximum pull-up speed of the auxiliary winch.(m/min)

    50

    Left and right inclination angle of drilling mast(°)

    ±5

    Forward and backward inclination angle of the drilling mast. (°)

    5/90

    Maximum driving speed(KM/h)

    1.5

    Maximum climbing angle.(°)

    25

    Maximum Driving torque.(KN.m)

    45000

    Overall width of working state.(mm)

    4200

    Overall length of transport status.(mm)

    13000

    Overall width of transport status.(mm)

    2800

    Overall height of transport status.(mm)

    3550

    Drill rod type

    Machine Lock

    Drill rod whether to provide custom

    Yes

    drill tools

    500-3000mm drilling bit、Drilling Barrel、Coring drill、Reaming drilling bit

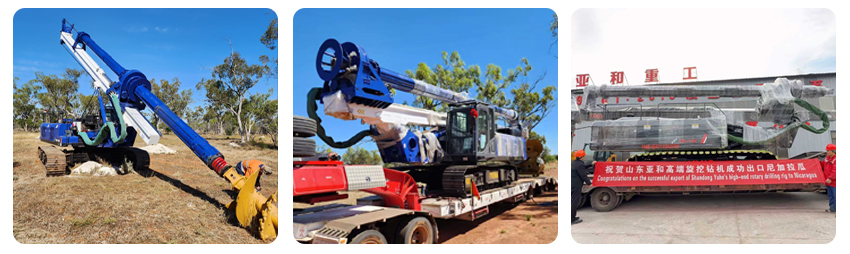

Construction Cases
