Kelly bar rotary drilling rig

Provide customized product solutions for customers

It can be operated in all terrains and complex working conditions, and the meteorological weathered rock, strong weathered rock, cobblestone, backfill stone, etc. can be taken by one machine

DR-220
DR-220
DR-220
DR-220
DR-220
DR-220

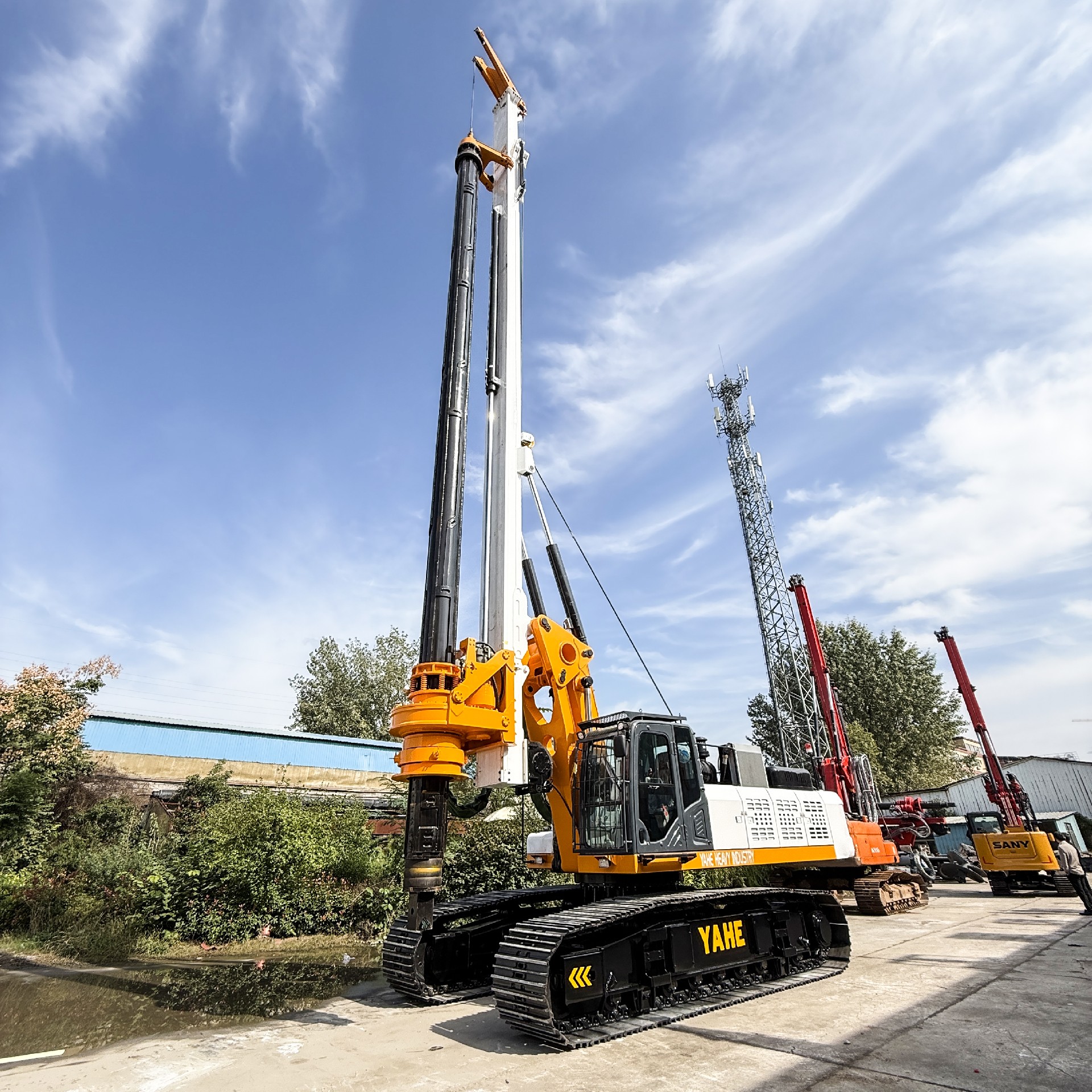

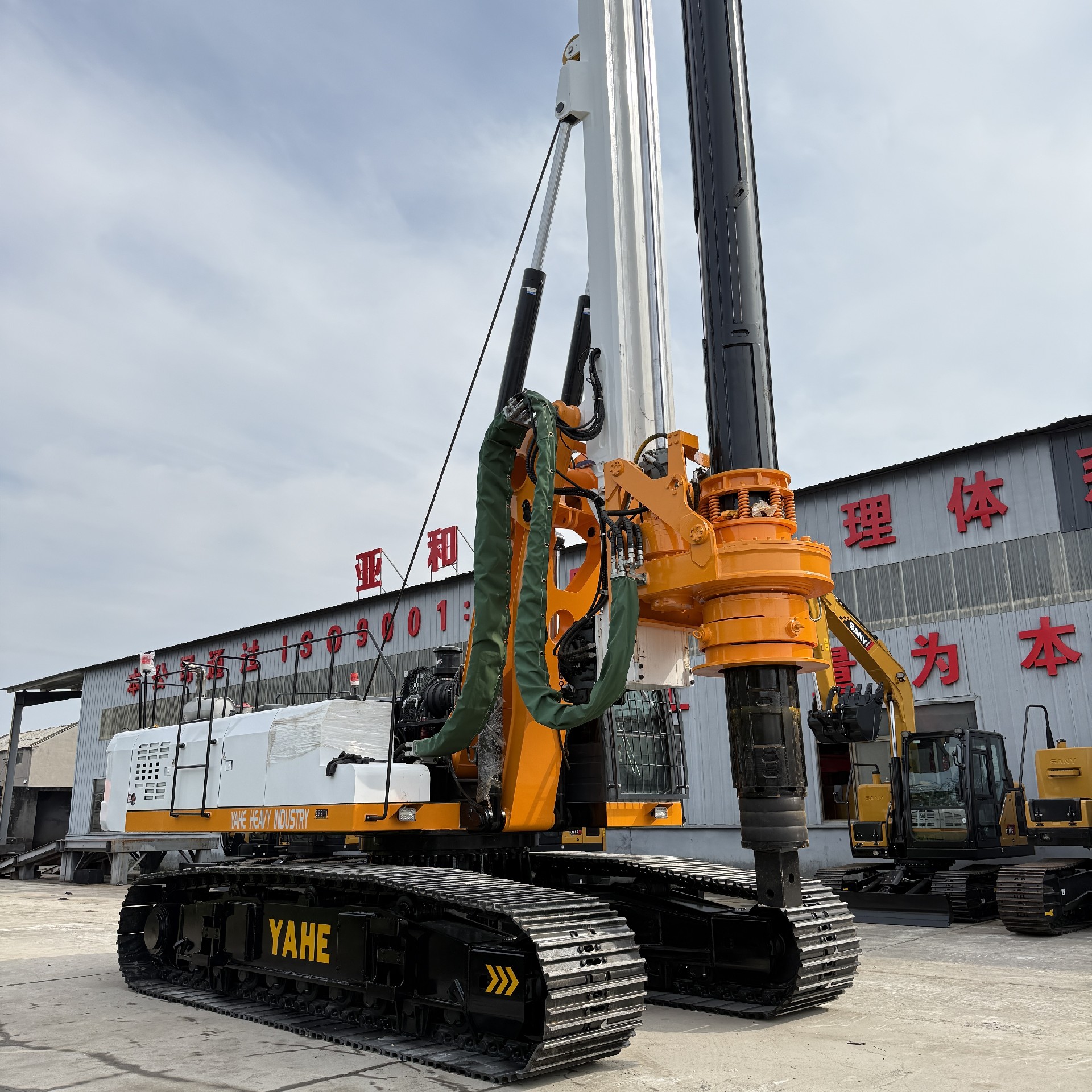

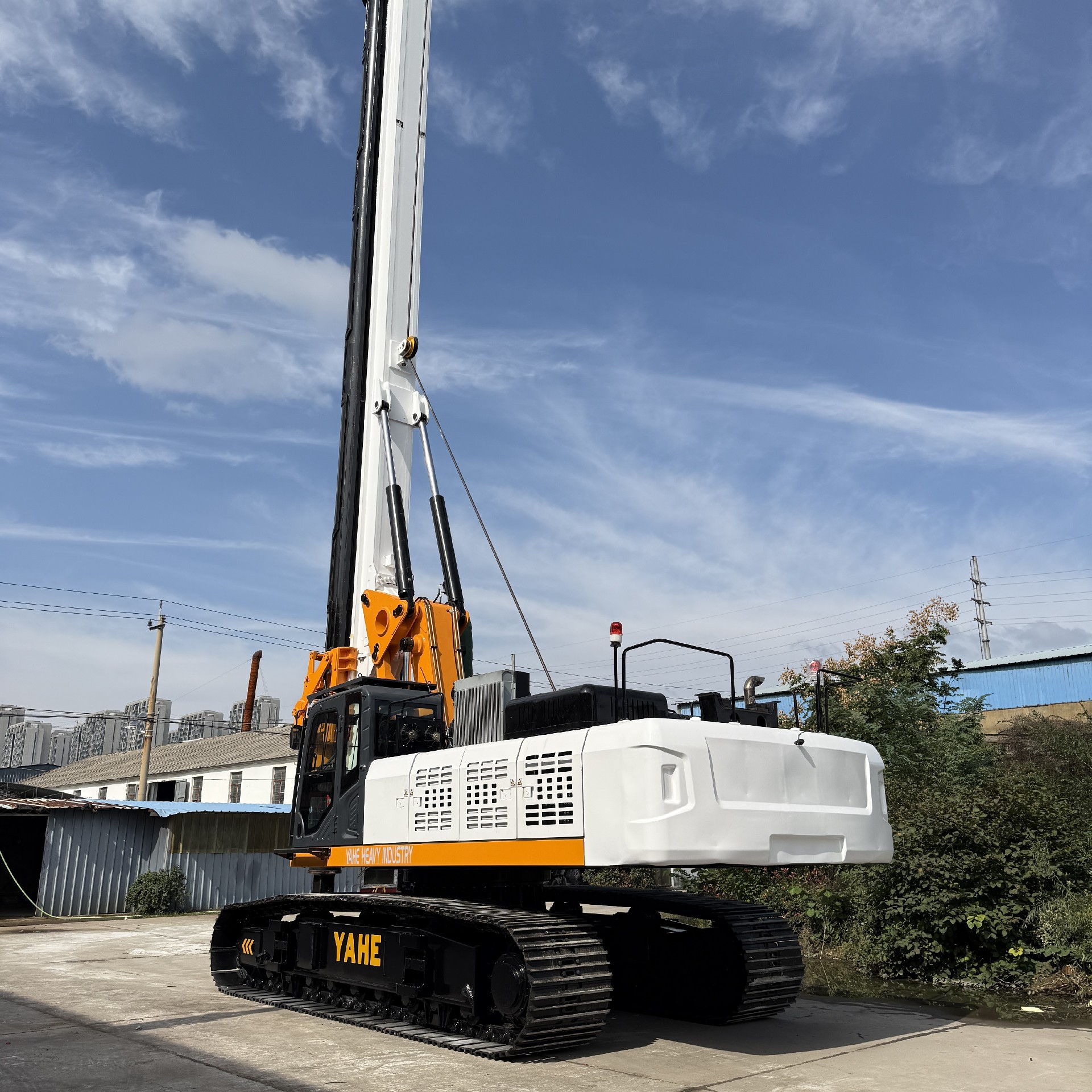

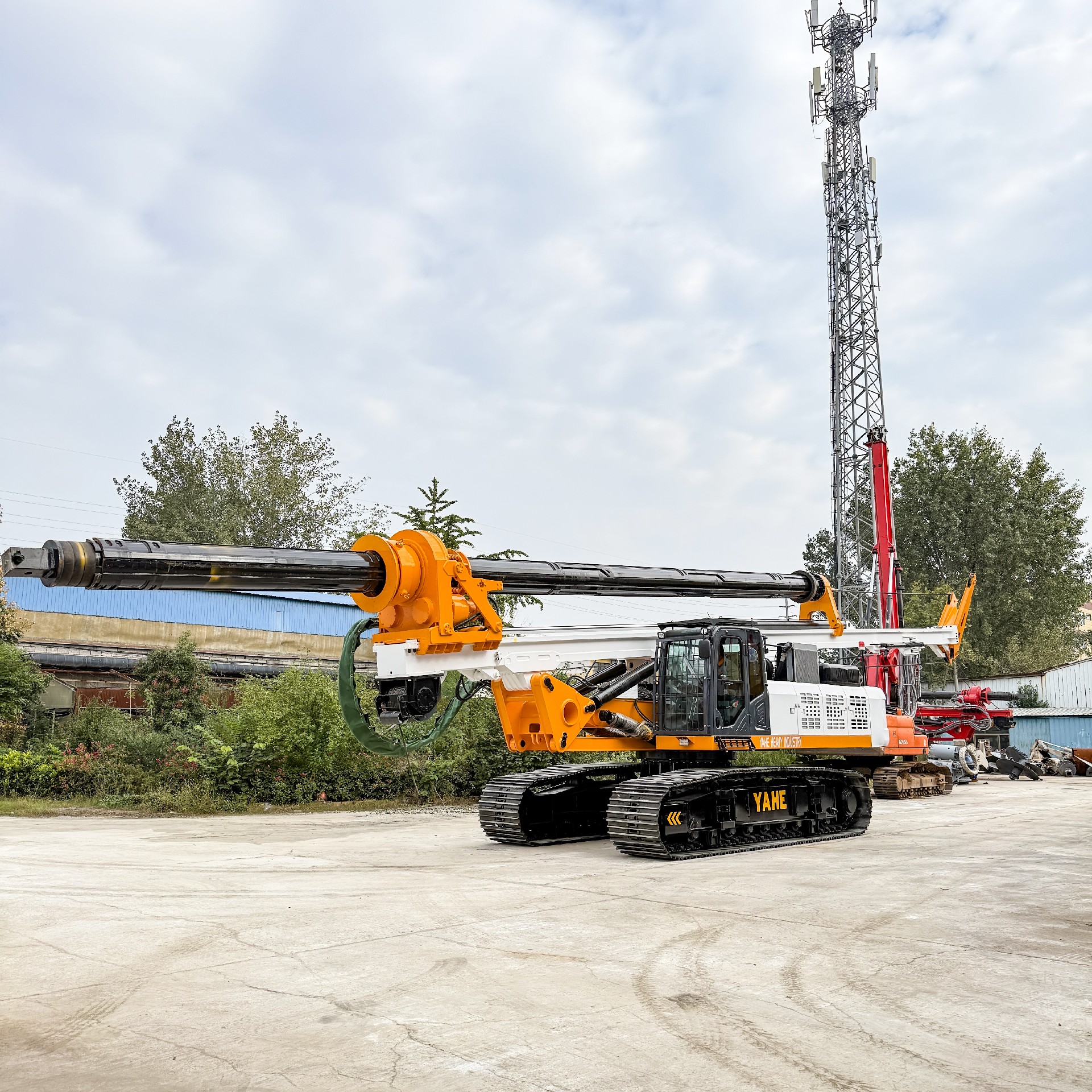

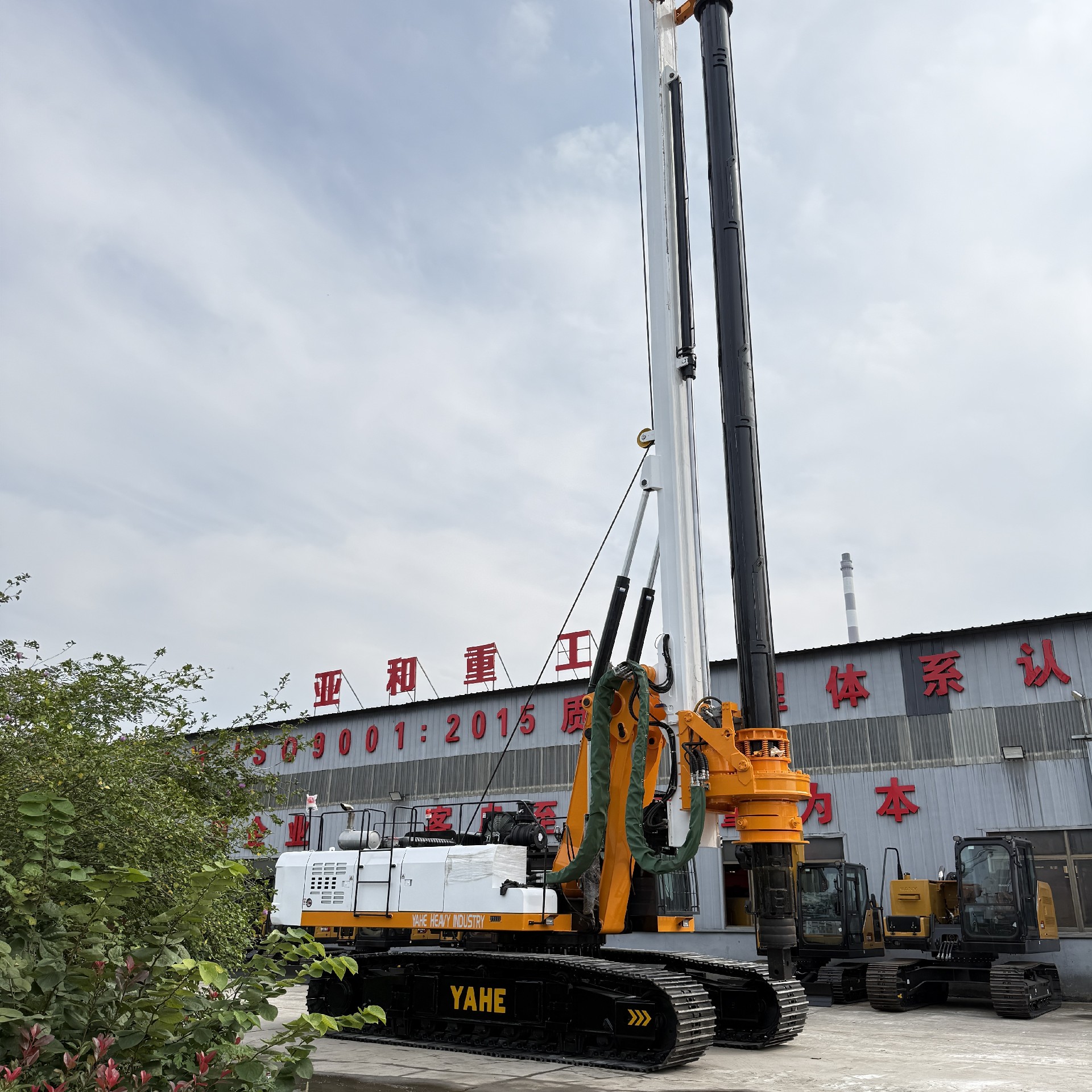

Kelly bar rotary drilling rig
DR-220

This rotary pile driver is equipped with a high-power Cummins brand engine and a Kawasaki hydraulic transmission system to ensure that the construction power output is strong and stable. The machine is equipped with a high-capacity retractable crawler chassis, which can overcome the complicated road conditions of construction operations. The chassis telescopic function can increase the center of gravity of the pile construction and increase its stability. The pile mast has an automatic vertical adjustment function, which can be tilted 5 degrees forward and 5 degrees left and right sideways. Adjust the drilling angle for different working conditions. The rig is equipped with a new control system, which can realize steering, telescopic chassis, body rotation, mast up and down and other functions through wireless remote control. The company is a research and development manufacturing company, all models are independently designed and manufactured, and have a number of related scientific and technological intellectual property rights. Products have CE, ISO, SGS and other quality management system certifications. For more information welcome your inquiry.


Machine weight:55t
Maximum drilling depth:46-60m
drilling diameter:600-2200mm
Consulting Products

     Product Type

     DR-220

     Chassis length.(mm)

     5800

     Track width.(mm)

     700

     Machine weight.(t)

     55

     Maximum drilling depth.(m)

     46-60

     drilling diameter.(mm)

     600-2200

     Engine brand

     WEICHAI/Cummins(Optional)

     Engine rated power.(KW/rpm)

     194KW-220KW

     Maximum torque of power head.(KN.m)

     220

     Power head speed.(rpm)

     7-27

     Maximum working pressure of hydraulic system main pump.(MPa)

     30

     Maximum working pressure of hydraulic system auxiliary pump.(MPa)

     28

     Maximum bow rate of the main pump hydraulic system.(L/min)

     126*2

     Maximum bow rate of the auxiliary pump hydraulic system.(L/min)

     16

     Maximum pressure of the pressurization system.(KN)

     180

     Maximum lifting force of the pressurization system.(KN)

     160

     Maximum travel pressure system.(mm)

     5000

     Maximum lifting force of the main winch.(KN)

     260

     Maximum pull-up speed of the main winch. (m/min)

     55

     Maximum lifting force of the auxiliary winch.(KN)

     80

     Maximum pull-up speed of the auxiliary winch.(m/min)

     70

     Left and right inclination angle of drilling mast(°)


     Forward and backward inclination angle of the drilling mast. (°)

     5/90

     Maximum driving speed(KM/h)

     1.5

     Maximum climbing angle.(°)

     30

     Maximum Driving torque.(KN.m)

     80000

     Overall width of working state.(mm)

     4400

     Overall length of transport status.(mm)

     13500

     Overall width of transport status.(mm)

     3200

     Overall height of transport status.(mm)

     3600

     Drill rod type

     Lock/Friction resistance

     Drill rod whether to provide custom

     YES

     drill tools

     600-3000mm drilling bit、Drilling Barrel、Coring drill、Reaming drilling bit

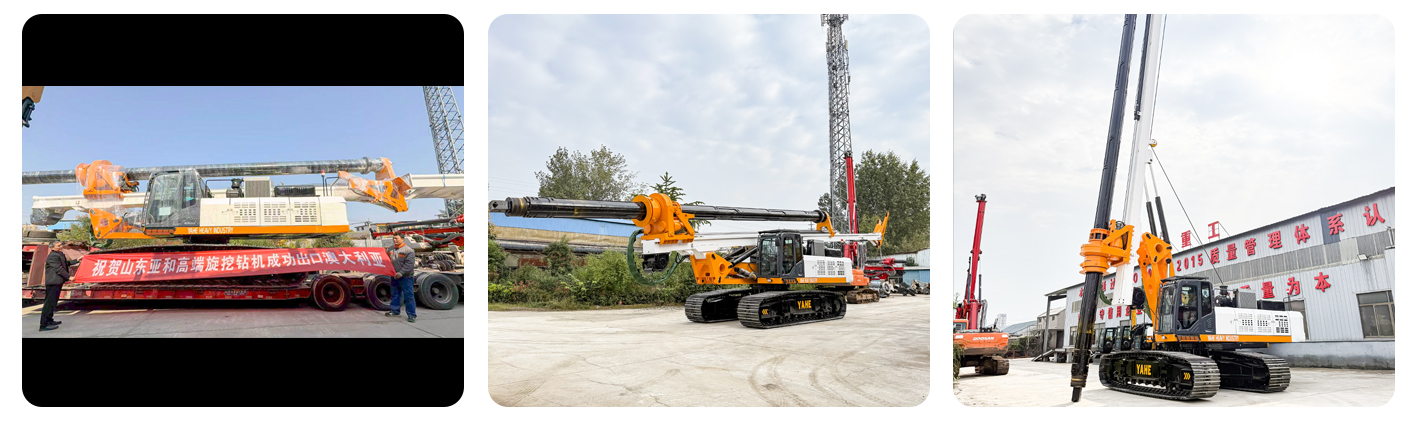

Construction Cases
