Kelly bar rotary drilling rig

Provide customized product solutions for customers

It can be operated in all terrains and complex working conditions, and the meteorological weathered rock, strong weathered rock, cobblestone, backfill stone, etc. can be taken by one machine

DR-150
DR-150
DR-150
DR-150
DR-150

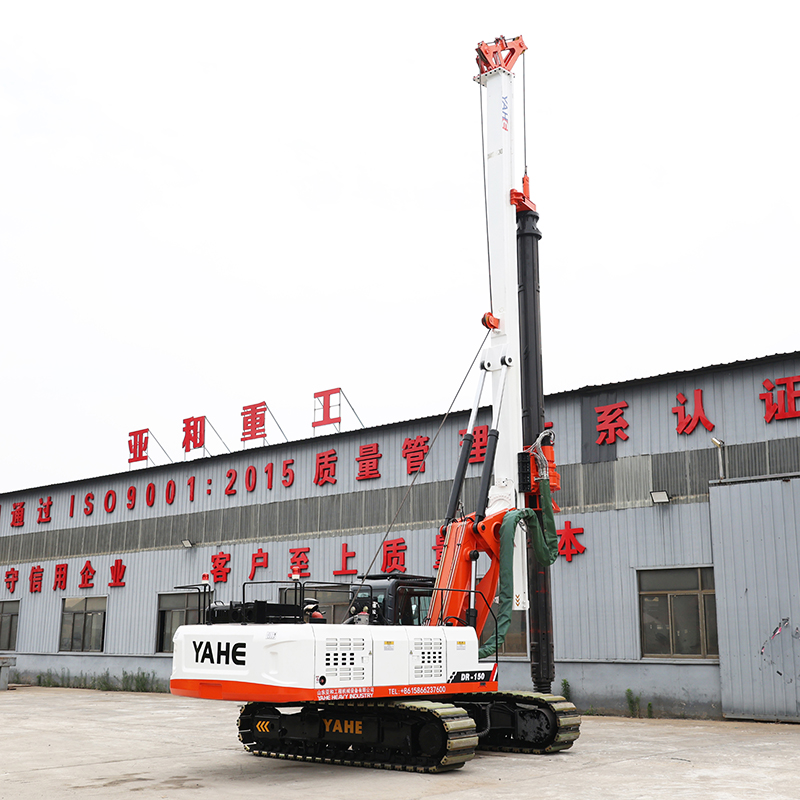

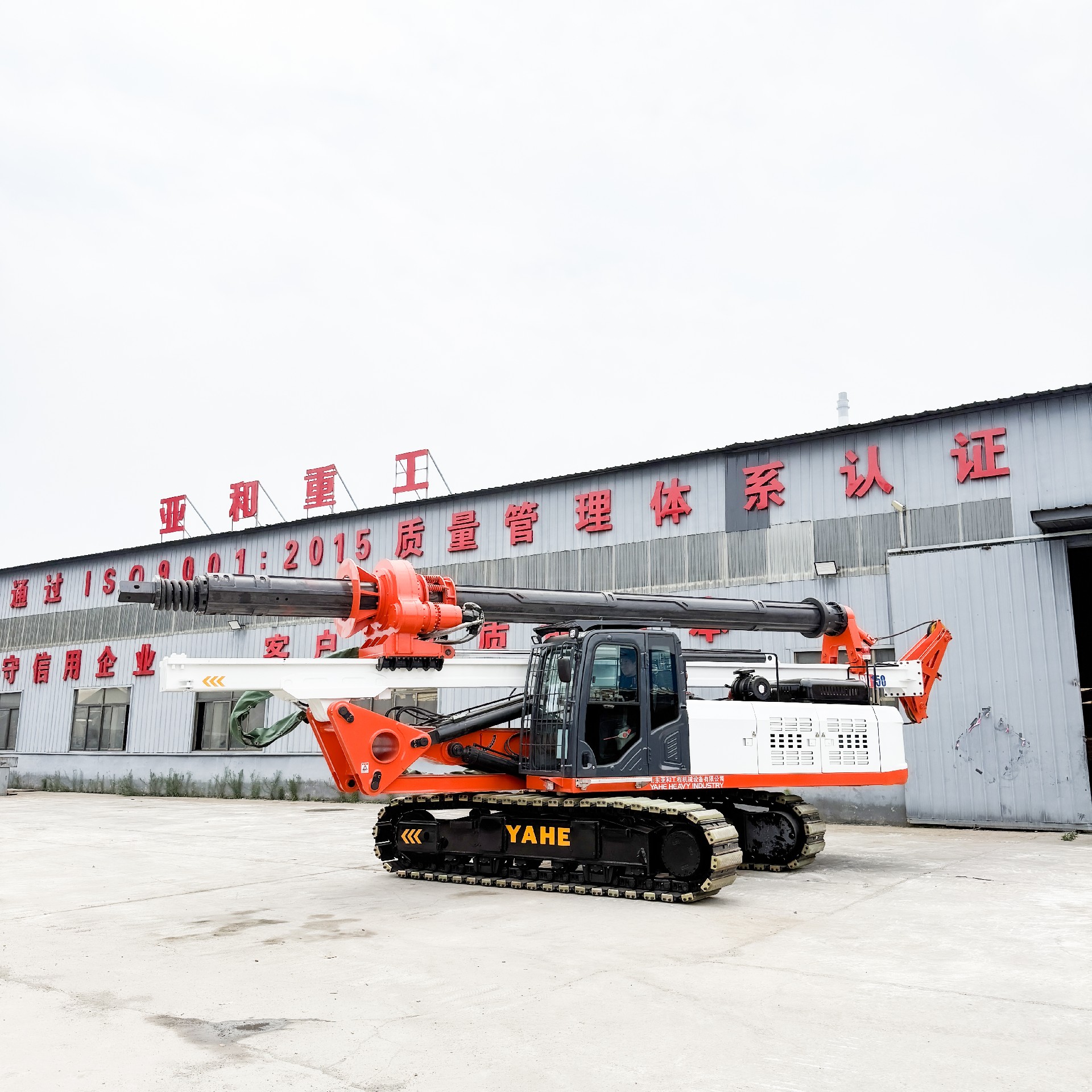

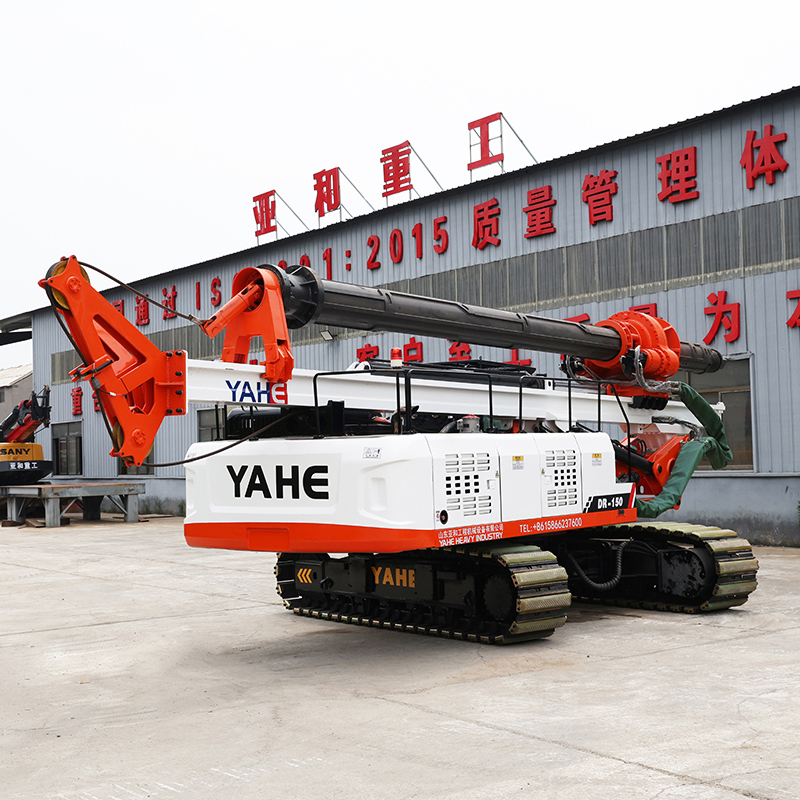

Kelly bar rotary drilling rig
DR-150

This model belongs to the general-purpose ground engineering drilling machine, suitable for comprehensive civil construction engineering, such as road and bridge construction, subway tunnel construction, dam water conservancy construction, airport and port construction, energy and mineral engineering construction, and so on. The maximum drilling depth is 30M, and the drilling diameter is 500-1600MM. The company's rig design and manufacturing process strictly follows international industry standards, and has a number of product quality system certifications such as ISO, CE, and SGS. The company has been engaged in the design and manufacturing of engineering machinery for more than 25 years. The original small machinery manufacturing and processing plant has developed into an engineering machinery enterprise with multiple independent intellectual property rights and outstanding comprehensive design and manufacturing capabilities. The company's products have been exported to more than 30 countries and regions and are widely recognized by the international market. For more information, your inquiry is welcome.

Machine weight:30t
Maximum drilling depth:30m
drilling diameter:500-1800mm
Consulting Products

Classic structural design and manufacturing process with advanced control system to provide reliable guarantee for your engineering quality



     Product Type

     DR-150

     Chassis length.(mm)

     4200

     Track width.(mm)

     600

     Machine weight.(t)

     30

     Maximum drilling depth.(m)

     30

     drilling diameter.(mm)

     500-1800

     Engine brand

     Yuchai/Weichai/Cummins(Optional)

     Engine rated power.(KW/rpm)

     151KW-176KW

     Maximum torque of power head.(KN.m)

     150

     Power head speed.(rpm)

     10-50

     Maximum working pressure of hydraulic system main pump.(MPa)

     30

     Maximum working pressure of hydraulic system auxiliary pump.(MPa)

     12

     Maximum bow rate of the main pump hydraulic system.(L/min)

     112*2(Optional)

     Maximum bow rate of the auxiliary pump hydraulic system.(L/min)

     16

     Maximum pressure of the pressurization system.(KN)

     100

     Maximum lifting force of the pressurization system.(KN)

     80

     Maximum travel pressure system.(mm)

     3000

     Maximum lifting force of the main winch.(KN)

     150

     Maximum pull-up speed of the main winch. (m/min)

     50

     Maximum lifting force of the auxiliary winch.(KN)

     15

     Maximum pull-up speed of the auxiliary winch.(m/min)

     50

     Left and right inclination angle of drilling mast(°)

     ±5

     Forward and backward inclination angle of the drilling mast. (°)

     5/90

     Maximum driving speed(KM/h)

     1.5

     Maximum climbing angle.(°)

     25

     Maximum Driving torque.(KN.m)

     45000

     Overall width of working state.(mm)

     4200

     Overall length of transport status.(mm)

     13000

     Overall width of transport status.(mm)

     2800

     Overall height of transport status.(mm)

     3500

     Drill rod type

     Machine Lock

     Drill rod whether to provide custom

     Yes

     drill tools

     500-2000mm drilling bit、Drilling Barrel、Coring drill、Reaming drilling bit
