Kelly bar rotary drilling rig

Provide customized product solutions for customers

It can be operated in all terrains and complex working conditions, and the meteorological weathered rock, strong weathered rock, cobblestone, backfill stone, etc. can be taken by one machine

DR-180
DR-180
DR-180
DR-180

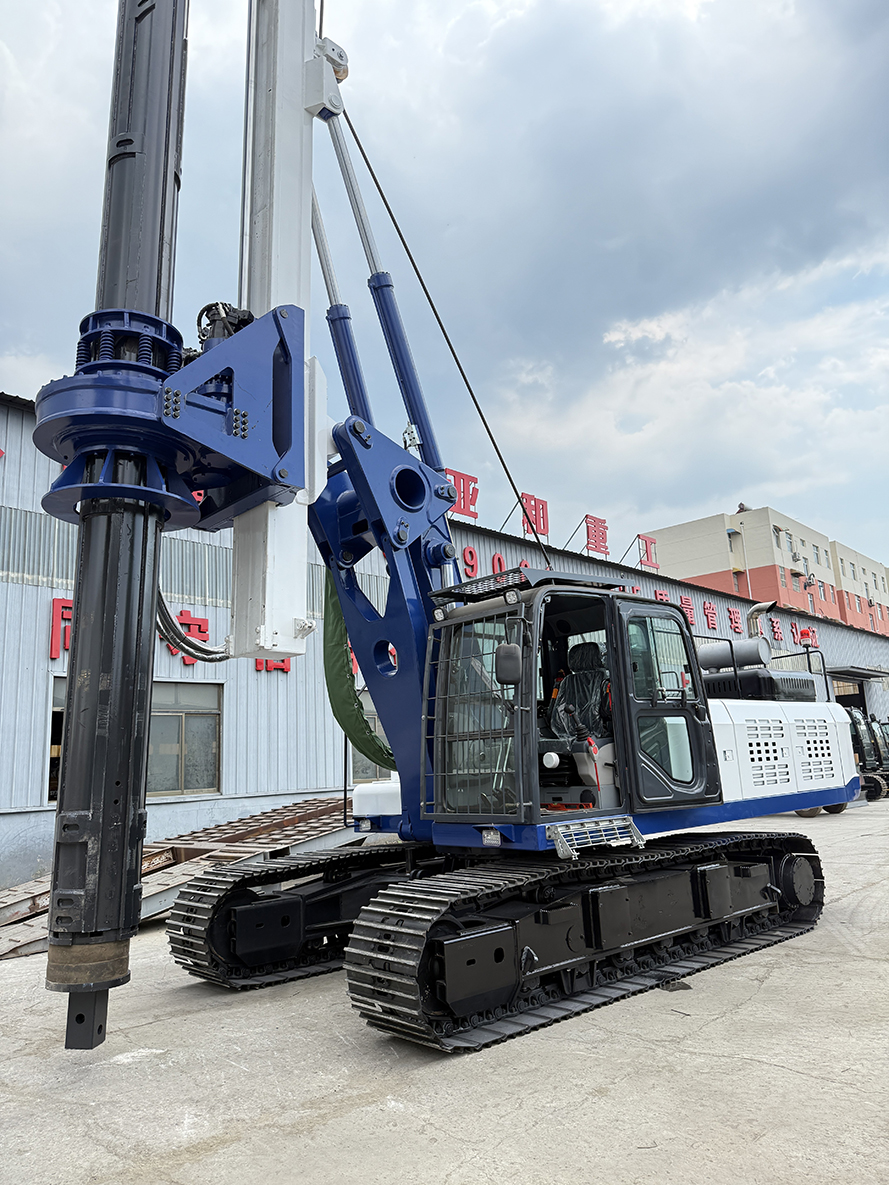

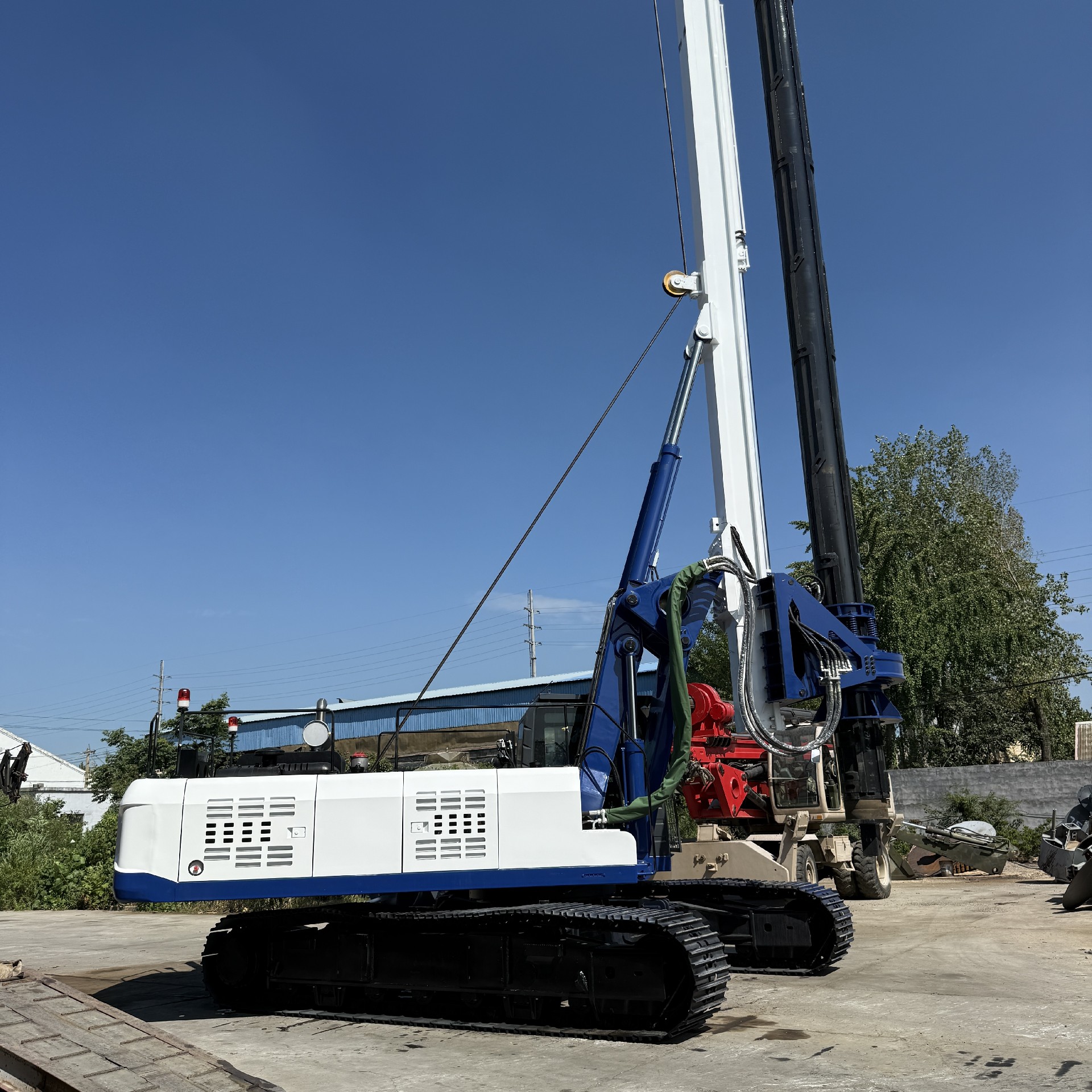

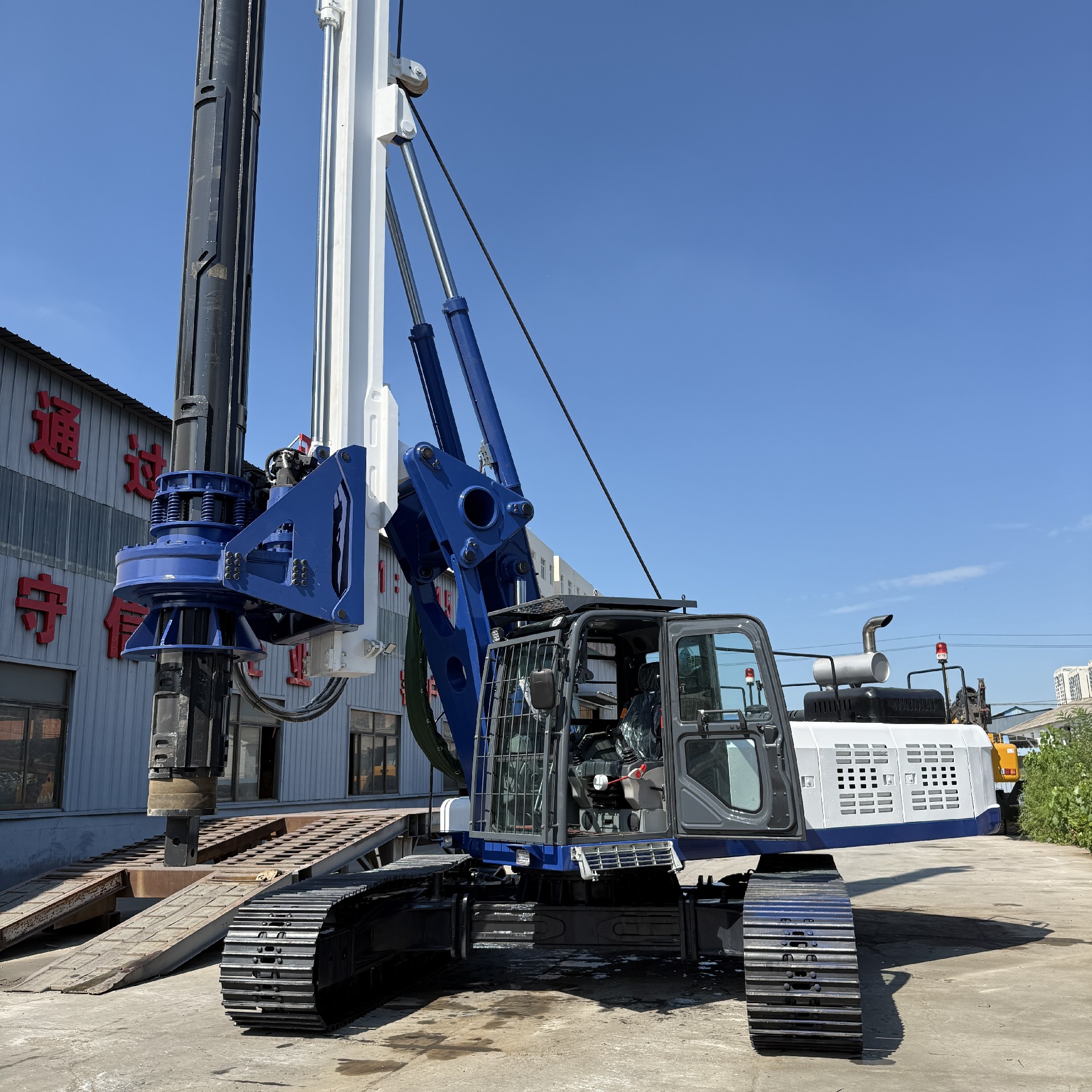

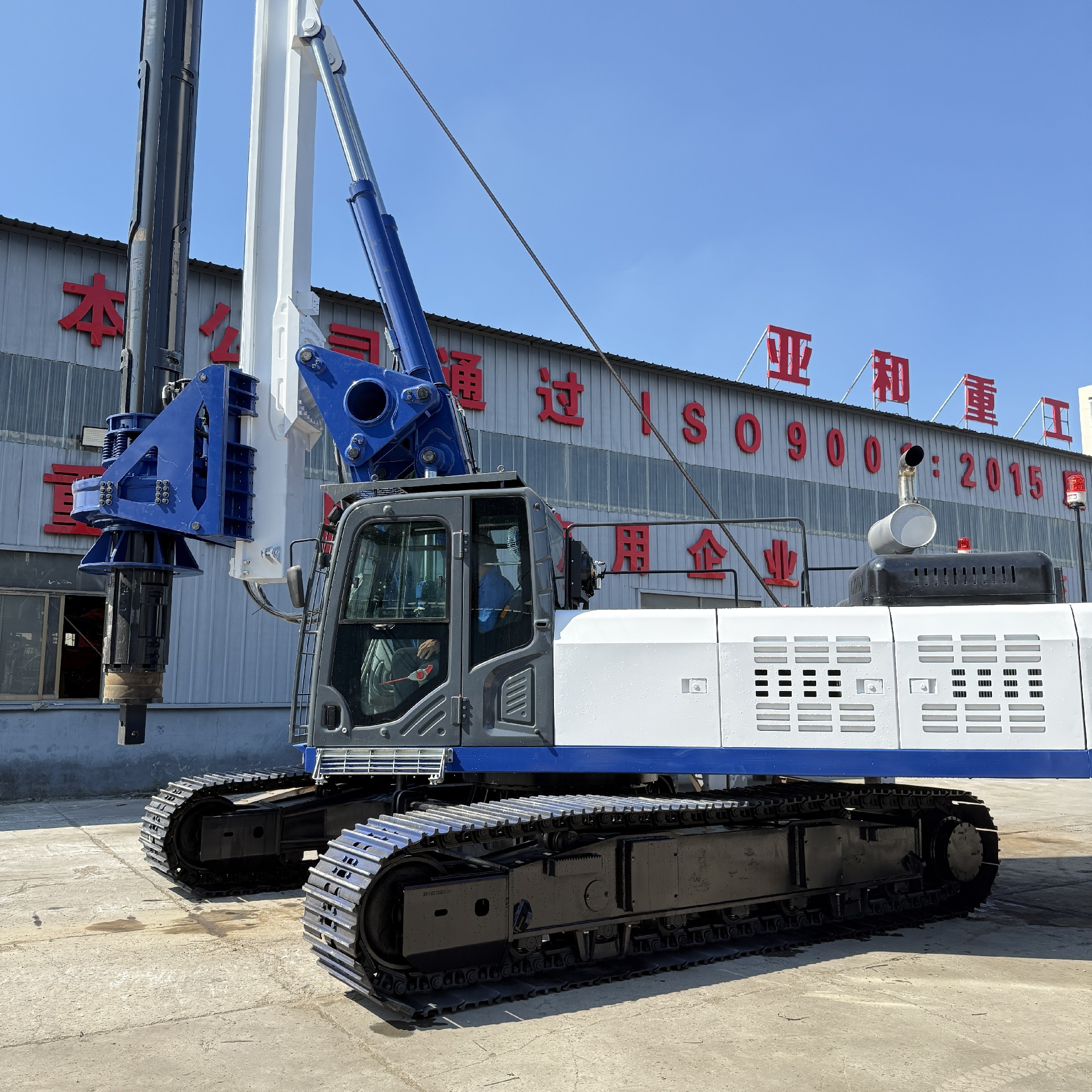

Kelly bar rotary drilling rig
DR-180

This rotary drilling rig has a torque head of 180 kN.m and a drilling depth of up to 50M. Depending on the type and diameter of the drill, the drilling speed and depth will change accordingly. The remodeled rotary drilling rig is equipped with a hydraulically adjustable telescopic chassis, which can adjust the width of the chassis according to the construction environment, so that the center of gravity can be moved downward and the stability of the construction can be increased. The mast is lying horizontally when not working, and needs to be adjusted to stand up when working. When the angle between the mast and the ground is greater than 75 degrees, the automatic hammer adjustment function can be turned on, making the construction more accurate and safe. The mast also has a left-right swing function with an included angle of 5 degrees. This function is suitable for adjusting the verticality of the mast when the overall construction ground is inclined and uneven. This model has passed ISO, CE, SGS and other product quality certifications.


Machine weight:46t
Maximum drilling depth:45m
drilling diameter:600-2000mm
Consulting Products

     Product Type

     DR-180

     Chassis length.(mm)

     5200

     Track width.(mm)

     700

     Machine weight.(t)

     46

     Maximum drilling depth.(m)

     45

     drilling diameter.(mm)

     600-2000

     Engine brand

     Weichai/Cummins(Optional)

     Engine rated power.(KW/rpm)

     176KW-194KW

     Maximum torque of power head.(KN.m)

     180

     Power head speed.(rpm)

     10-40

     Maximum working pressure of hydraulic system main pump.(MPa)

     30

     Maximum working pressure of hydraulic system auxiliary pump.(MPa)

     20

     Maximum bow rate of the main pump hydraulic system.(L/min)

     112*2

     Maximum bow rate of the auxiliary pump hydraulic system.(L/min)

     16

     Maximum pressure of the pressurization system.(KN)

     160

     Maximum lifting force of the pressurization system.(KN)

     140

     Maximum travel pressure system.(mm)

     4000

     Maximum lifting force of the main winch.(KN)

     200

     Maximum pull-up speed of the main winch. (m/min)

     50

     Maximum lifting force of the auxiliary winch.(KN)

     50

     Maximum pull-up speed of the auxiliary winch.(m/min)

     70

     Left and right inclination angle of drilling mast(°)

     ±5

     Forward and backward inclination angle of the drilling mast. (°)

     5/90

     Maximum driving speed(KM/h)

     1.5

     Maximum climbing angle.(°)

     30

     Maximum Driving torque.(KN.m)

     61000

     Overall width of working state.(mm)

     4200

     Overall length of transport status.(mm)

     12000

     Overall width of transport status.(mm)

     3000

     Overall height of transport status.(mm)

     3550

     Drill rod type

     Machine Lock/Friction

     Drill rod whether to provide custom

     Yes

     drill tools

     600-3000mm drilling bit、Drilling Barrel、Coring drill、Reaming drilling bit
